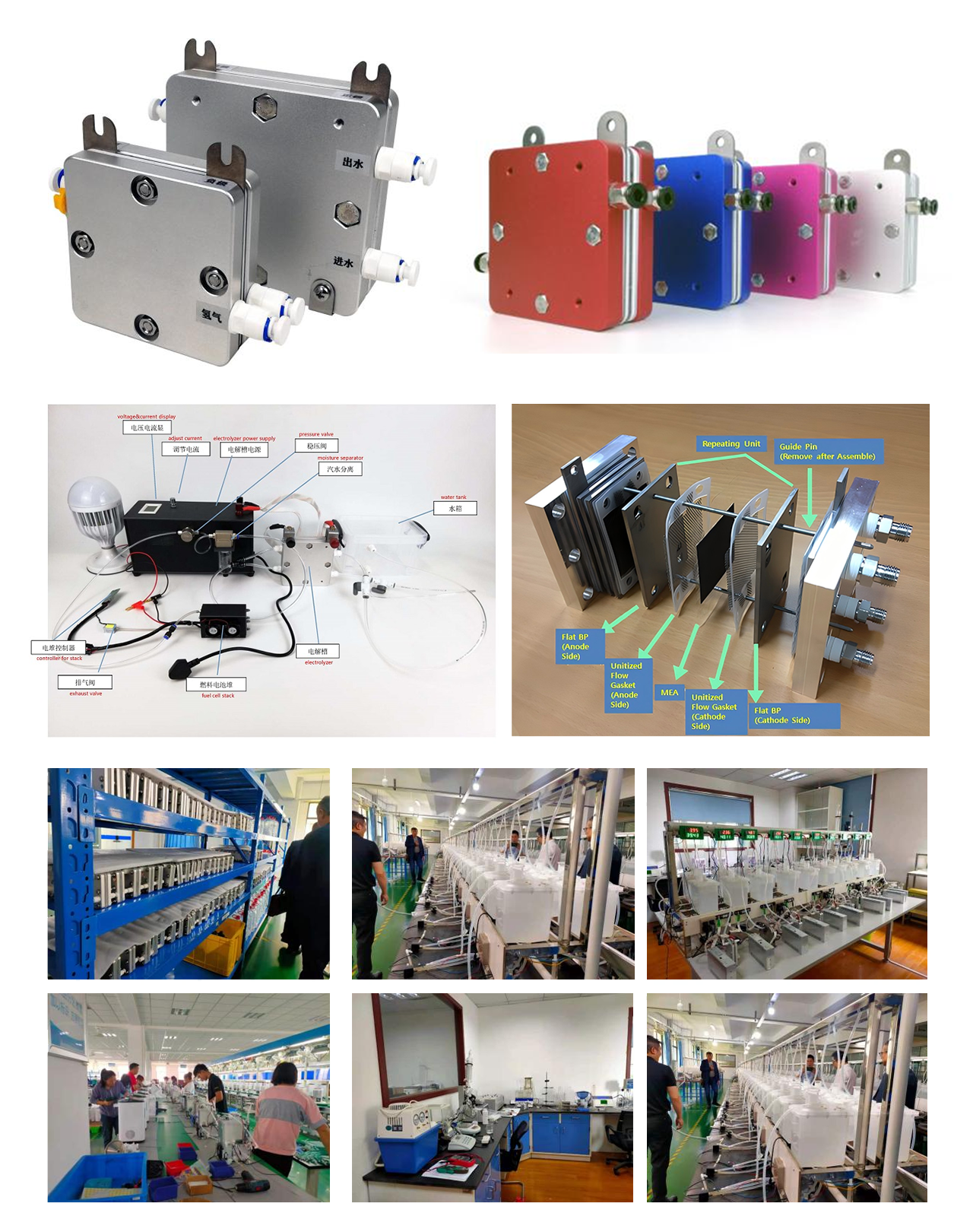

100ML PEM Hydrogen generator
The electrolyzer made by Hycircle Technology Co., Ltd is a promising option for hydrogen production, which generate hydrogen and oxygen from pure water with the aid of a power supply. In this process, at the anode side, distilled water is converted into protons, oxygen gas, and electrons. Protons travel to the cathode side by going through the membrane used inside the electrolyzer cell. Electrons travel to the anode through the external circuit. At the anode, hrdrogen ions get converted into hydrogen gas. Welcome to inquiry our PEM series electrolytic cell.

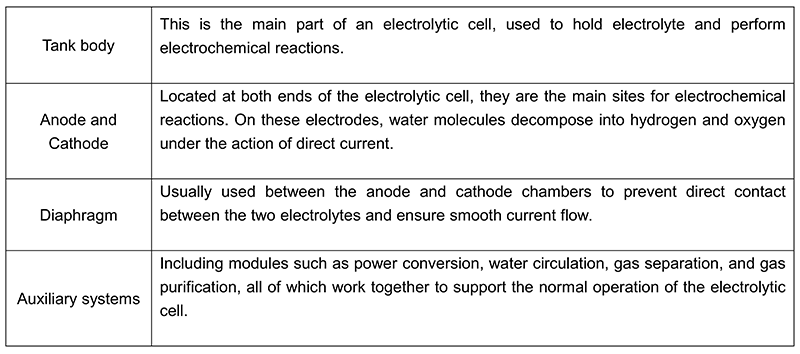

This 1000 ml hydrogen generator is one of series product of Hycircle Technology Co., focusing on the green energy& safety markets. Hycircle owns product which uses pure water as the raw material of water electrolysis for hydrogen production process to avoid potential pollution and corrosion problems. Normally, the electrolytic cell is composed by multiple key components, including cathode plate, anode plate, MEA frame, seals, GDL and so on.

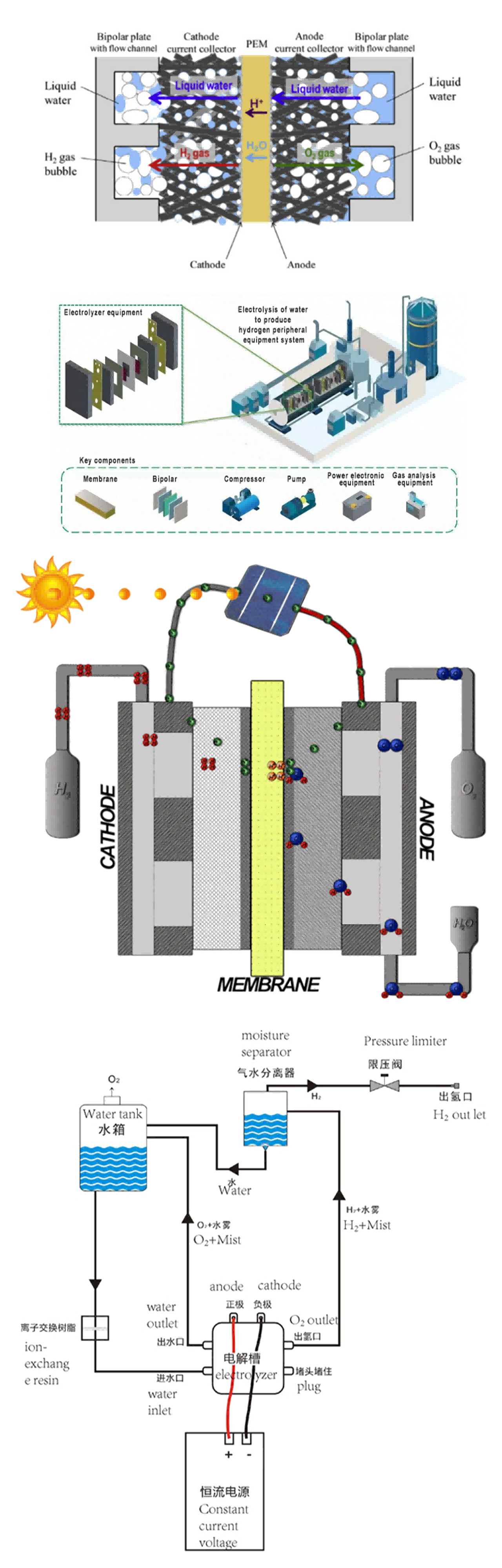

The electrolytic cell is the core unit of hydrogen production equipment, hydrogen generator utilize proton exchange membrane as solid electrolyte to split water. In this process, water molecules undergo oxidation reactions on the anode side, losing electrons and generating oxygen and protons (H+). Subsequently, protons are conducted through the proton exchange membrane to the cathode side under the action of an electric field, while electrons flow from the anode to the cathode through an external circuit. On the cathode side, protons combine with electrons to undergo a reduction reaction, generating hydrogen gas. In this way, the PEM electrolytic cell completes the process of decomposing water into hydrogen and oxygen. electrical energy is converted directly to chemical energy via electrochemical route. De-ionized water is supplied from outside to the anode side of the electrolytic cell and gets converted into hydrogen and oxygen gas. This is also known as water electrolysis.
Hydrogen production made by Hycircle Technology ., Co owns advanced technology ensures a balance between thin thickness and conductivity, which use reinforcement layer, apply polymer coating and so on. Three qualified factories and two laboratories do we have now, Which have complete production process to ensure the service life and stable output of the product. If you are interested in our electrolytic cell, welcome to inquiry us.
The following reactions take place within it:
• Anode: 2H2O → 4H+ + O2 + 4e-
• Cathode: 4H+ + 4e- → 2H2
• Complete Reaction: 2H2O → 2H2 + O2
Advantages：
• Hydrogen generator high purity of hydrogen
• High efficiency of hydrogen production
• Electrolytic cell low noise
• Water electrolysis no corrosion and pollution
• Regulation of output
• Electrolytic cell rechnical security
Applications：
R&D
Electrolytic cell apply to research laboratories and academic institutions conducting experiments requiring on-site hydrogen generation.
Energy Storage
Water electrolysis widely utilized in renewable energy systems and contribute to grid stability and energy management, which store excess energy in the form of hydrogen for later use.
Fuel Cells
Fuel cell provide energy for backup power systems, portable electronics, or small vehicles, which use hydrogen produced by electrolytic cell.
Specialty Gas Production
Electrolytic cell used for industries and fields that require small amounts of high-purity hydrogen, such as semiconductor manufacturing, metal processing, or chemical synthesis.
Education and Training
As for educational tool in schools and training centers to study principles of electrolysis and hydrogen production.
