10L hydrogen tank Low Voltage Solid State

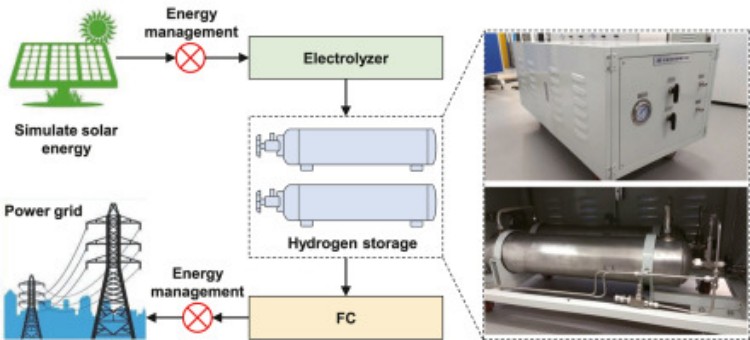

Hycircle is a high-tech enterprise focusing on the hydrogen energy industry chain, we provide various components and integrated systems from hydrogen production to hydrogen use. Hydrogen storage tank is a part of hydrogen storage, which is used to connect the electrolyzer hydrogen production and fuel cell hydrogen, this storage tank is a high-pressure solid state hydrogen storage, compared with the high-pressure gaseous hydrogen storage tank, it has a low cost and large capacity, if you are interested in our products, please feel free to contact us.
Hycircle is a hydrogen Fuel Cell manufacturer, which manufacture high density hydrogen fuel cell stack using creative thinking and technology to provide hydrogen storage solutions for hydrogen enthusiasts around the world. We have a professional and rich knowledge base of research and development team, dedicated to provide a complete after-sales service for the product from purchase to use.
Bottle diameter | 160 mm |
Bottle height | 870 mm |
Weight | 43 kg |
Volume | 10L |
Hydrogen storage capacity | >595 g |
Hydrogen filling pressure | 3.5 MPa |
Continuous hydrogen discharge pressure | 0.6 MPa |
Hydrogen discharge flow rate | >21 L/min |
Usage environment | -20~70℃ |
The10L hydrogen storage tank produced by Hycircle can store more than 6680L hydrogen gas through high-pressure storage.
Applications:
1. Fuel cell vehicles: storing hydrogen as a hydrogen fuel cells source for fuel cell vehicles.
2. Energy reserve: Storing hydrogen in high efficiency Fuel cell stacks as a backup energy source.
3. Industrial use: Storing hydrogen for industrial chemical reactions or other industrial production.
Advantages:
1. High hydrogen purity: solid state hycircle Hydrogen Fuel Cell Stack can improve the purity of hydrogen to a very high degree through some processing technology.
2. Long-term storage stability: solid state hydrogen storage cylinders can store hydrogen for a long time without any hydrogen leakage or quality degradation.
3. Environmentally friendly: Storing hydrogen is an environmentally friendly energy solution, and as an important means of storing hydrogen, solid state hydrogen storage cylinders can significantly improve the environmental benefits of hydrogen energy.
Working Principle:
Low-pressure solid-state hydrogen storage tanks utilize solid-state hydrogen storage technology to achieve low-pressure storage by storing hydrogen in special materials (e.g., metal hydrides, alloy hydrides, etc.). Compared to traditional gaseous hydrogen storage tanks, solid state hydrogen storage offers higher safety and energy density.
Gas Cylinder Pressure Relief Valve
R & D team designed a special hydrogen fuel cell one-stage two-stage integrated pressure reducing valve.
Thehydrogen fuel tank pressurereducing Valve is an integrated gas supply unit designed for small hydrogen supply systems, suitable for 35MPa drones and other equipment. It includes a pressure gauge, safety valve, one-way charging valve, manual on/off valve, filter, and secondary pressure reducing valve for a more efficient and safer hydrogen supply.
One-stage parameters: Input pressure: 3-35MPa Output pressure: 0.5MPa-1MPa
Second-stage parameters: Input pressure: 0.1-1.6MPa Output pressure: 0.05-0.06MPa
