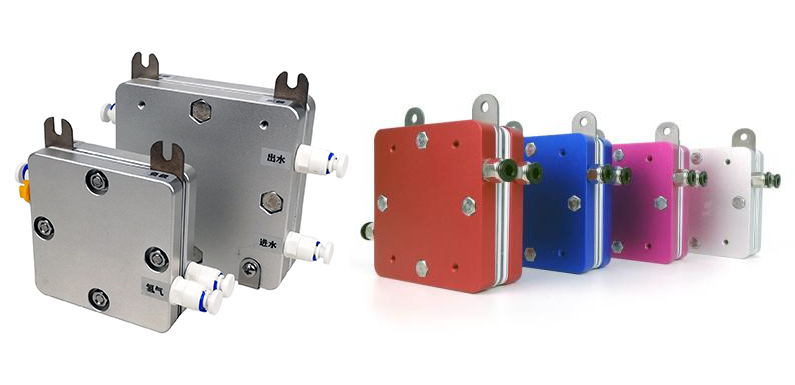

1500ml PEM electrolyer proton exchange membrane environmentally friendly

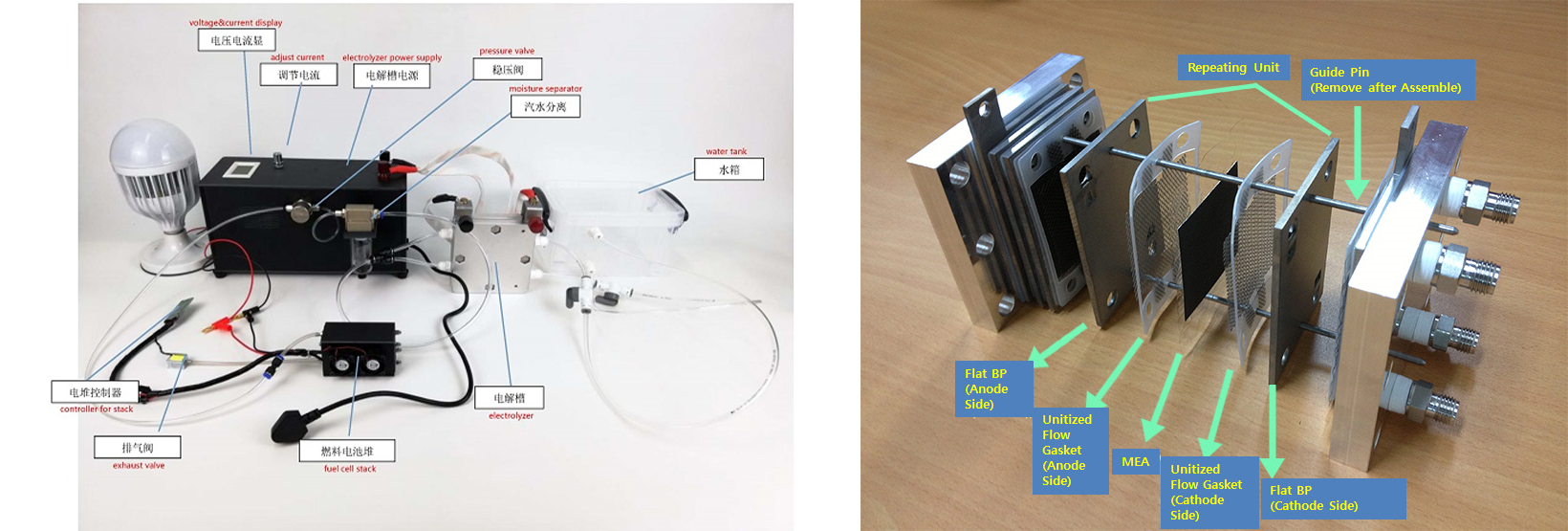

The material selection, structural design and manufacturing process of the PEM electrolysis stack will directly affect the efficiency and stability of the entire system. We have been focusing on the research and development of new energy sources for many years, especially in the design of electrolyzers. We arrange the proper space inside the equipment to ensure that the equipment can dissipate heat quickly and maintain a low temperature. The pipe connection is also very stable and reliable.It is made of special materials, which has the advantages of temperature and pressure resistance, and prevents pipe leakage caused by aging or falling off of the pipe.
The product is capable of releasing 1,500 ml of hydrogen per minute, compared with traditional fossil fuels, the energy conversion efficiency of PEM electrolysis reactors is 2 to 3 times that of the former. It is clean and pollution-free and does not emit any gas harmful to the environment. Its application range covers almost all fields of electrolysis technology, such as chlor-alkali industry, electrolysis of water for hydrogen production, metal smelting, electroplating, etc.
Technical Specifications | |
Model No. | PEM-1500 |
Current（A） | 40A |
Voltage（V） | 8V-14V |
Power（W） | 400W-630W |
H2 yeild（ml/min） | 1500ml/min |
O2 yeild（ml/min） | 750ml/min |
H2 purity（%） | ≥99.99% |
Circulating water temperature（℃） | 35-50℃ |
Circle water (ml/min) | ＜400ml/min |
Water quality | Pure water, Deionized water |
Cycle mode | Natural circulation (inlet down, backwater up, water tank outlet should be more than 10cm above electrolytic cell inlet), Pump cycle (no height difference requirement) |
Electrolysis | PEM pure water electrolysis |
Max pressure（Mpa） | 10-15bar |
Electrical conductivity (uS/cm) | ≤1 uS/cm |
Electrical resistivity (mΩ/cm) | ≥1 mΩ/cm |
TDS (ppm) | ≤1 ppm |
Working life | ＞6000 hours |
