Thickness 183 Nation 117 Proton Exchange Membrane
This Nafion membrane supplied by hycircle is a medium- thick ion exchange membrane material, which is mainly used for PEM electrolyzer and 183 microns, between thinner and thicker proton exchange membrane. We are specialized suppliers of proton exchange membranes. Several years experience do we have now, which ensure our products own the advantages of high conductivity, durability, environmentally friendly and non-polluting, mechanical strength. Would you like to use the highly versatile and efficient electrolyzer membranes? Welcome to inquiry us.
Nafion PFSA membrane are non-reinforeced films, which as a separator in electrochemical cells that demand high ionic conductivity, such as fuel cells and PEM Electrolyzer. This nafion N117 membrane are required to selectively transport cations across the cell junction, which In its acidic (hydrogen ion) form and derivatives, it serves as a solid superacid catalyst, making it valuable for a broad range of synthetic applications.
Characteristic
Nafion N117 membrane good thermal stability, High temperature resistance
PFSA membrane electrochemical oxidation resistance,Low corrosion,Good chemical stability
Perfluorosulfonic acid membrane good mechanical properties, Long life
Nafion Pfsa Membrane higher conductivity,High output power
Membranes for a wide variety of electrochemical applications
This perfluorosulfonic acid membranes are composed of a PFSA/polytetrafluoroethylene (PTFE) copolymer. Widely utilized in electrochemical cells, they serve as solid electrolytes that conduct cations. Nafion N117 membrane come in a variety of grades and embody different properties, allowing designers and engineers to match nafion N117 membrane to their specific application needs.

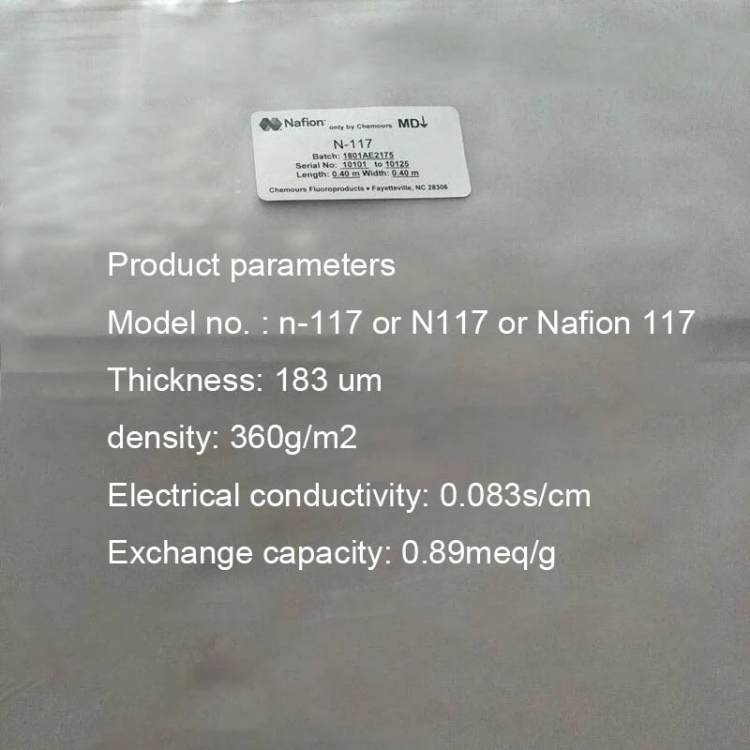

It's a thin transparent plastic proton exchange membrane designed to transport H+ ions through the polymer structure and N-117 features a thickness of 183 microns
Due to its high thicknes, this perfluorosulfonic Acid Membrane is particularly well-suited for MEA manufacture and used for methanol and formic acid fuels field.
PFSA membrane available in series of shapes and sizes with various customization options based on specific requirement.
Features and Benefits

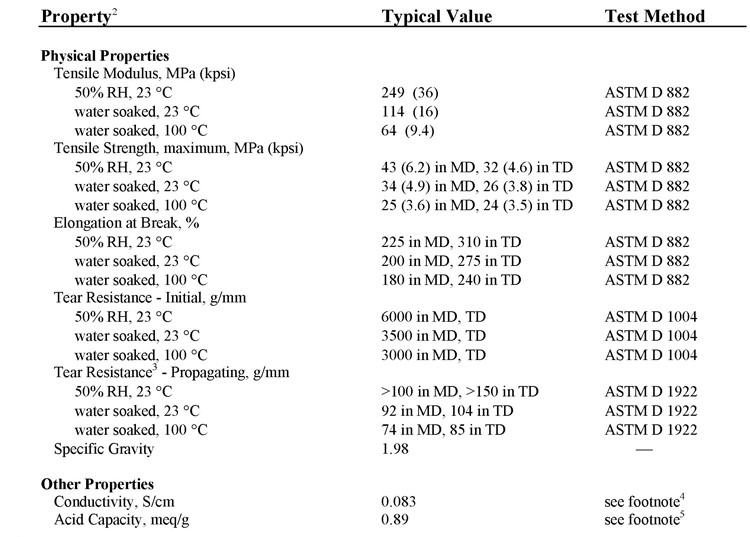

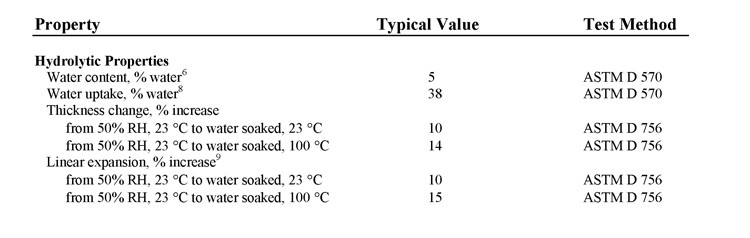

Nafio PFSA membrane possess distinct characteristics and are suitable for a wide range of applications. (See table below.)

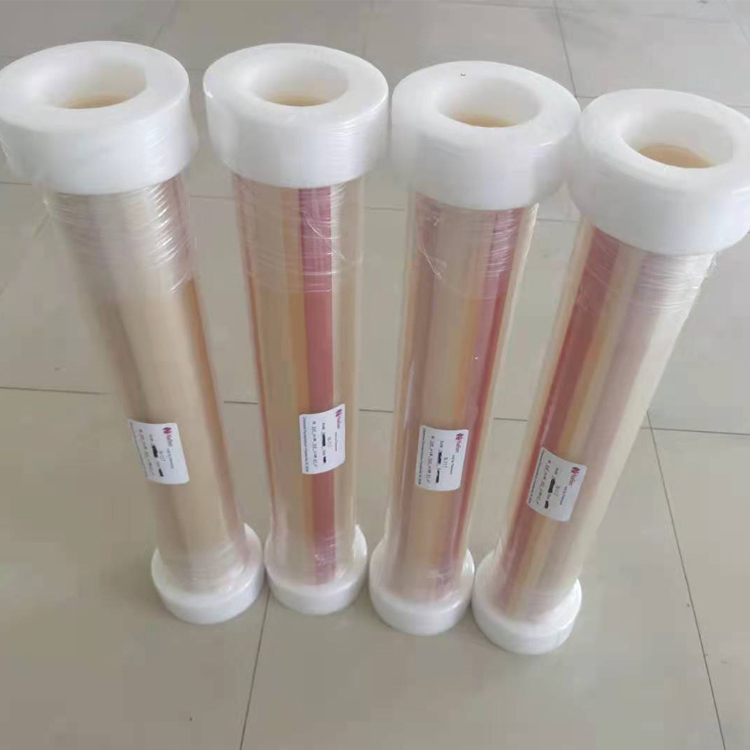

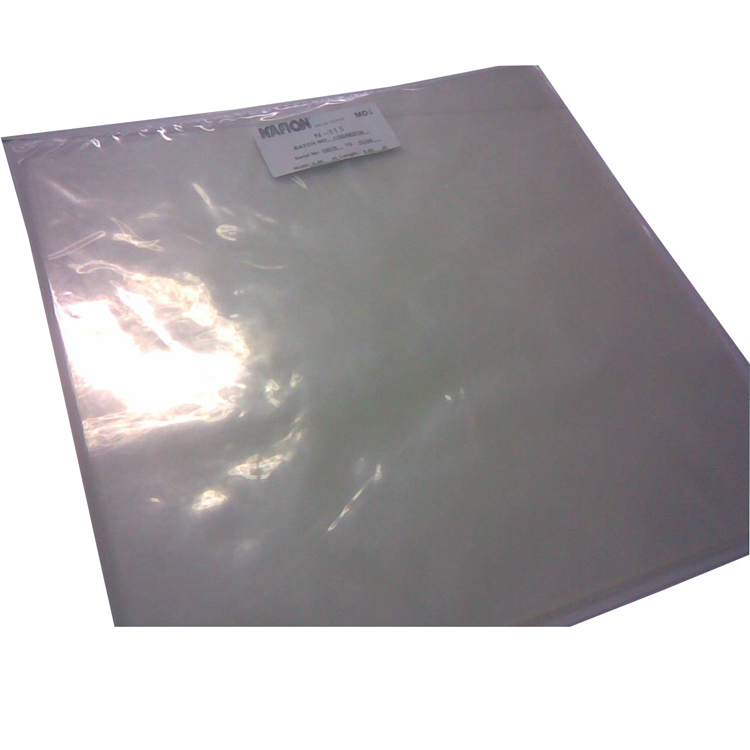

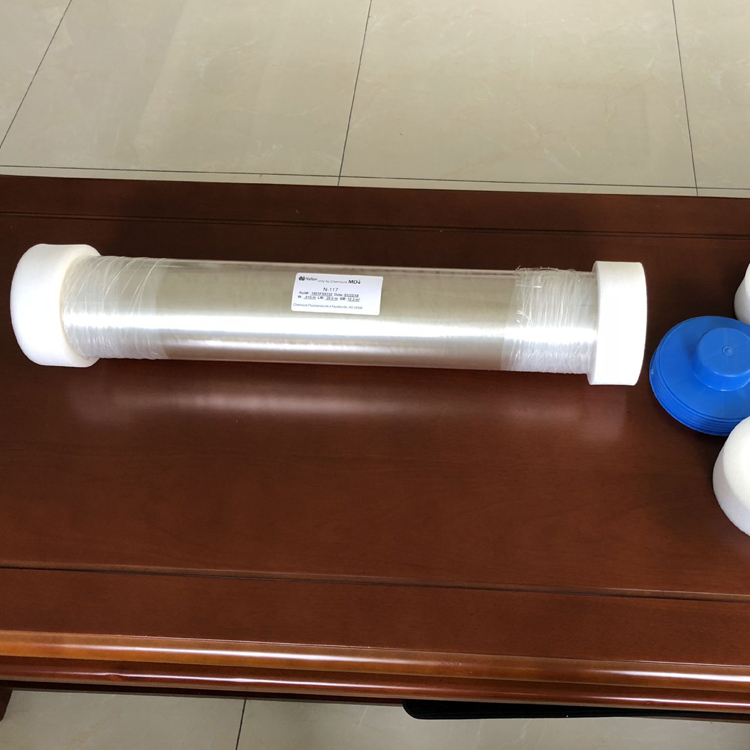

Product Display
