4.7L High pressure gaseous state hydrogen tank
Hycircle techonlogy Co., Ltd is a high-tech enterprises and effective manufacturers in China field of hydrogen energy. Regard the 4.7L high pressure gaseous hydrogen storage cylinder, it widely used by a number of the world’s largest OEMs that design, develop and manufacture compessed hydrogen storage systems for fuel-cells and internal- combustion engines. We integrate hydrogen production, utilization, and storage into one system, which provide kinds of hydrogen tanks model. Welcome to inquiry us when you would like to 4.7L High pressure gaseous state hydrogen tank.

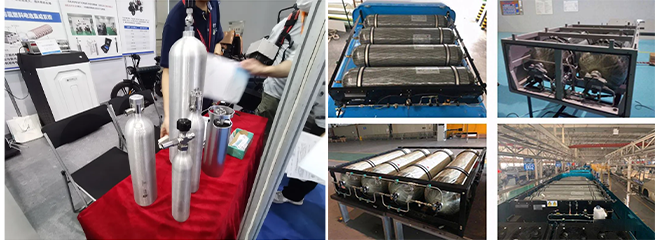

Hydrogen tank is defined as any type of vessel that is used to store compressed hydrogen gas. Hycircle is manufacturer advantage innovative cylinder technology to provide hydrogen solution that is ideal for hydrogen transit buses, heavy-duty trucks, vans, bulk gas transport, boats, and trains. As a part of the clean urban transport for Global Low Carbon Projects, our hydrogen cylinder were also used on UAV and hydrogen powered vehicles.
The 4.7L high pressure gaseous state hydrogen tank is made of carbon fibre+6061AL material ( also high-strength composite materials) are now used to store hydrogen at higher pressures to achieve greater driving range in hydrogen-fueled vehicles , which can store about 1500L hydrogen gas. Normally, the hydrogen tank always by pressurizing hydrogen gas to 20MPa-80MPa, the storage and release of hydrogen gas can be achieved.
High-pressure hydrogen tanks are designed not to rupture and are held to rigorous performance requirements. Furthermore, these hydrogen tank undergo extensive testing to make sure that they meet these performance requirements.

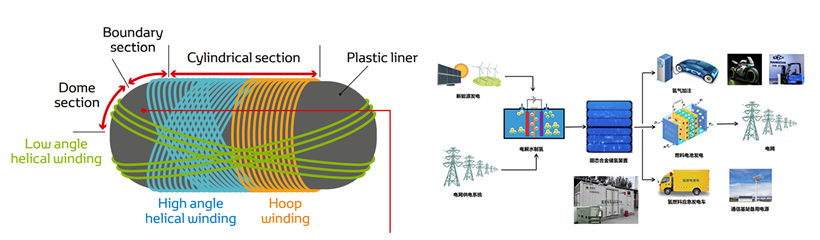

The carbon fiber hydrogen tank is mainly composed of a three-layer mixed material structure, including:
• Inner liner
The innermost material of hydrogen cylinder is a plastic liner, which is used to seal the air and prevent direct contact with hydrogen gas, serving as a barrier against hydrogen gas.
• Intermediate layer
This layer of Hydrogen storage cylinder is a pressure resistant layer composed of carbon fiber reinforced polymer (CFRP), which has high compressive strength and lightweight characteristics. It is composed of carbon fiber and epoxy resin, and the thickness of this layer is minimized as much as possible to improve hydrogen storage efficiency while ensuring the pressure resistance level.
• Outer layer
The outer layer of hydrogen storage bottle is usually made of glass fiber reinforced material, which has high impact resistance and further enhances the overall mechanical strength and safety.
• Sealing and protection
The inner liner and intermediate layer of the hydrogen tank work together to ensure that hydrogen gas will not leak in high-pressure environments and can effectively resist external impacts.
Advantages :
• Hydrogen tank environmental protection and energy saving, effectively reduce air pollution and greenhouse gas emissions.
• Safe and reliable, manufacturer use carbon fiber material strict safety tests and certifications.
• Hydrogen storage cylinder efficient and reliable, which can store 1500L hydrogen.
• Hydrogen storage bottle abundant resources, which is in line with the concept of sustainable development.
