5KW water-cooled hydrogen fuel cell system manufacturer
Hycircle is a Fuel Cell Store in hydrogen energy, manufacturing finished products and components from the hydrogen production end to the hydrogen use end. This 5KW PEM fuel cell is a water-cooled fuel cells for the hydrogen end, which is a complete system that can be used not only for home power generation but also for transport, education and training，etc...

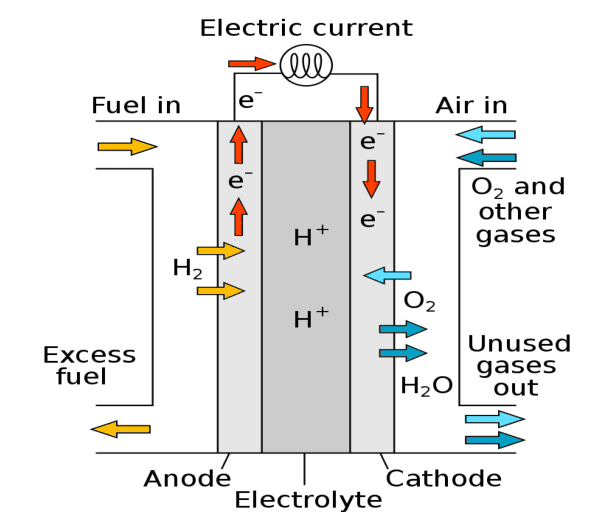

PEM hydrogen fuel cell is a power generation device that directly converts the chemical energy of hydrogen and oxygen into electrical energy. Battery basic principle is the inverse reaction of electrolysis of water, supplying hydrogen and oxygen to the anode and cathode respectively.
After hydrogen diffuses outward through the anode and reacts with the electrolyte, it releases electrons to reach the cathode through the external load. In this process, hydrogen reacts with oxygen to produce water and generates electricity as a by-product. This is a renewable energy and clean energy with great ideal.
The process does not produce any polluting by-products, and this technology not only meets the trend and demands of the global low-carbon economy, but also has a higher power generation efficiency than conventional batteries.
Parameter characteristics:
Technical Specifications | 0 kPa Back Pressure | 10 kPa Back Pressure |
Type of fuel cells | Liquid-Cooled | Liquid-Cooled |
Rated Power (kW) | 5.27 | 5.5 |
Cell Voltage | 0.6 | 0.6 |
Rated Voltage (V) | 96 | 96 |
Rated Current(A) | 54.855 | 57.24 |
Efficiency | 48% | 48% |
Design Lifetime (h) | 10000 | 10000 |
Dimensions (mm X mm X mm) | 156 X 78 X 192 | 156 X 78 X 192 |
Weight (kg) | 3.1 | 3.1 |
Volumetric Power Density (kW/L) | 2.2 | 2.3 |
Gravimetric Power Density (kW/kg) | 1.6 | 1.7 |
5KW water-cooled hydrogen fuel cell system Advantages:
| Ultra-thin composite board | Long life | High power density |
High speed voltage inspection | Automated mass production | Expandable |

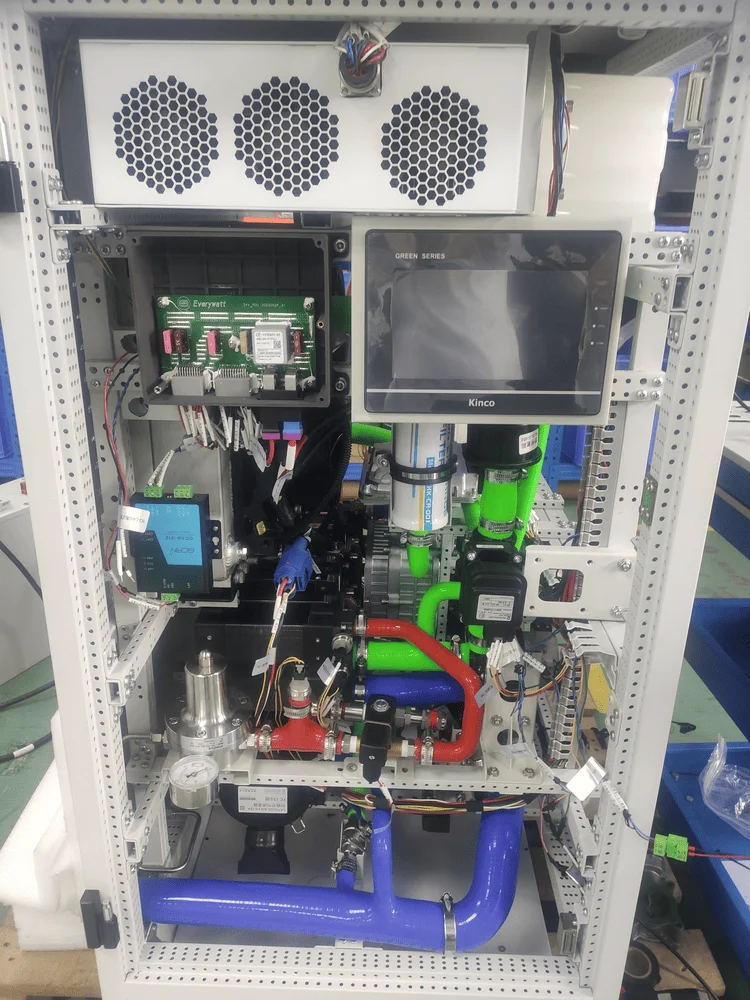

Internal structure of hydrogen fuel cell system:
