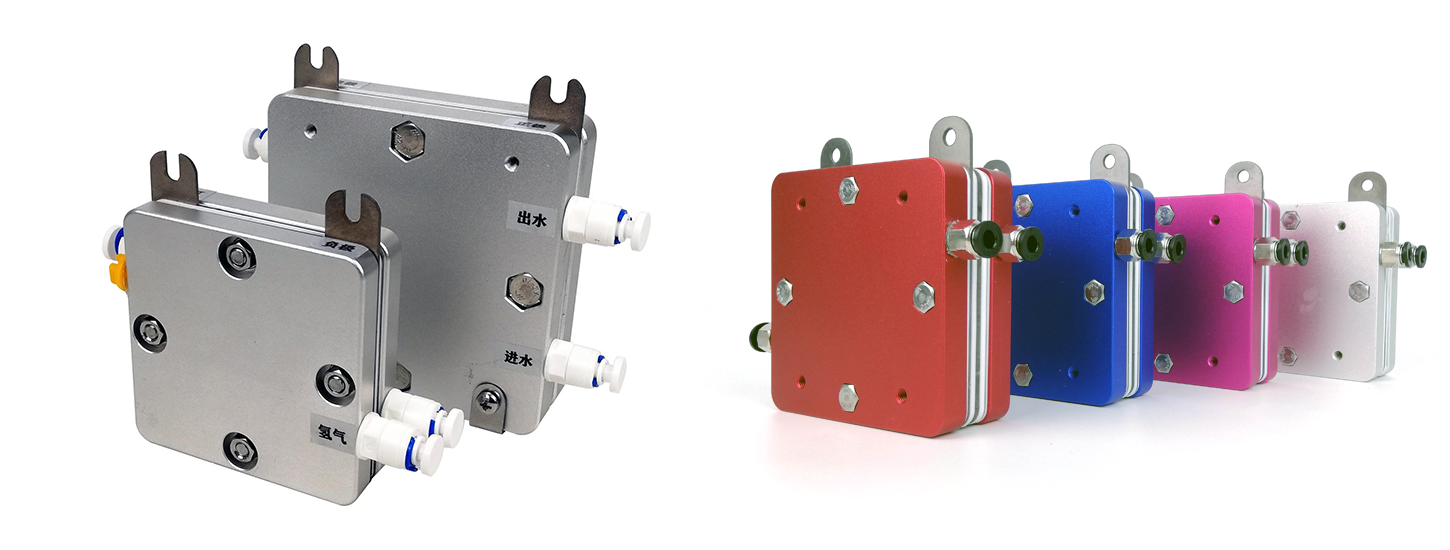

600ml high acid-resistant PEM electrolyzer

PEM600

China Hycircle Technology Co., LTD. Manufacturing is a high-tech enterprise, focusing on the research of new energy and renewable energy products, especially focusing on proton exchange membrane and electrolytic cell and other products. This product can release 600ml of hydrogen per minute, which is designed by using domestic advanced materials and flexible system design.

Quantity

Contact Now

add to cart

The Hycircle Proton exchange electrolytic cell is mainly composed of efficient cation exchange group and advanced polymer electrolyte. It uses the separation ability of the semi-permeable membrane and the basic reaction of proton conduction to output clean electric energy to the outside world. The electrolytic cell has a hydrogen production rate of 600 ml per minute, which is not only easy to operate, but also has stable chemical properties and low cost advantages. It is widely used in fuel cell technology and biomedicine. Green environmental protection and chemical industry and other key fields.

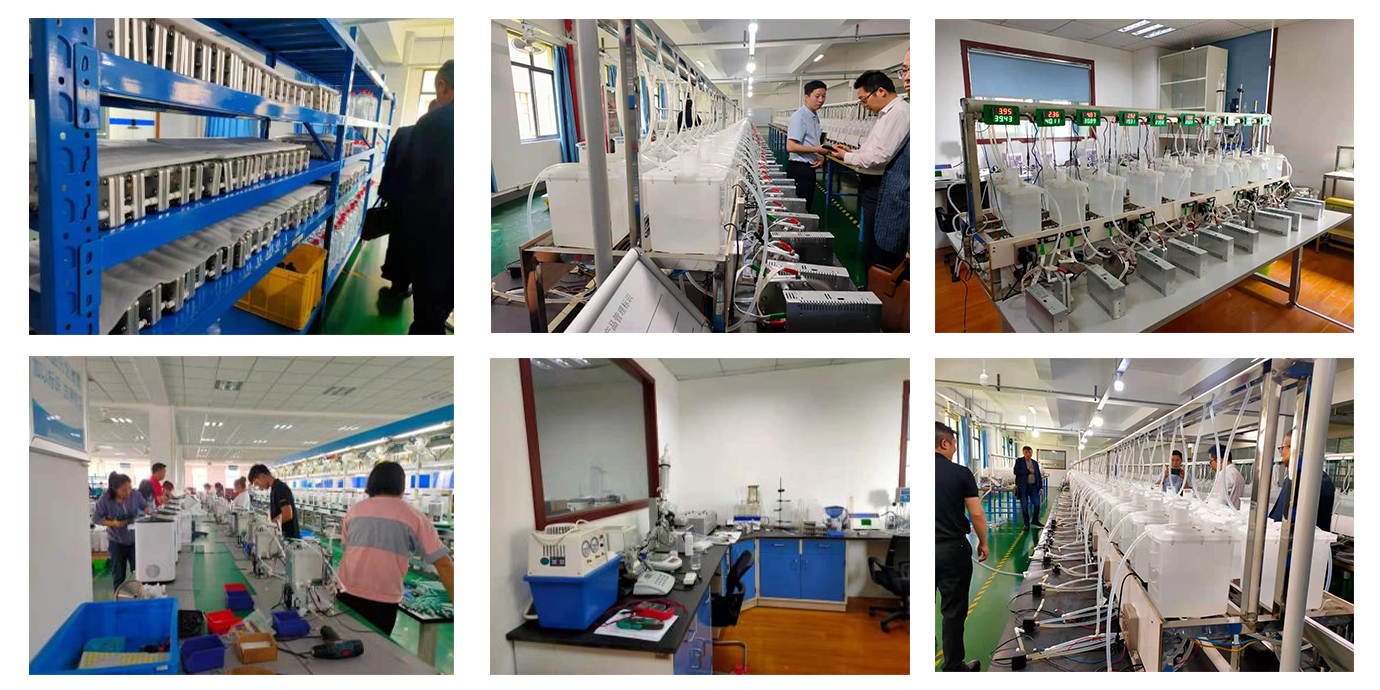

Our company is committed to the research and development of new energy, with its own brand, a set of perfect production process and a highly flexible product design system. We have three qualified factories and two laboratories in China, to provide customers with the most cutting-edge, high-quality electrolytic hydrogen production solutions. If you are interested in green, efficient and sustainable new energy, we sincerely invite you to buy our latest products, and we will provide you with the most competitive price.

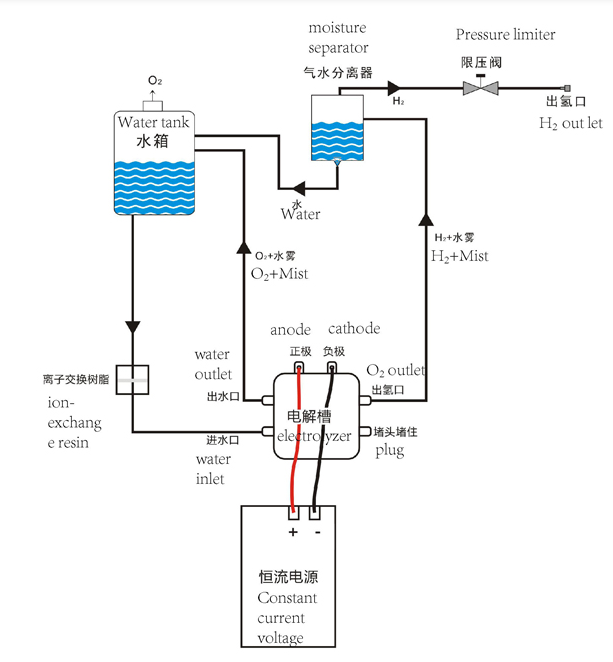

Working principles：

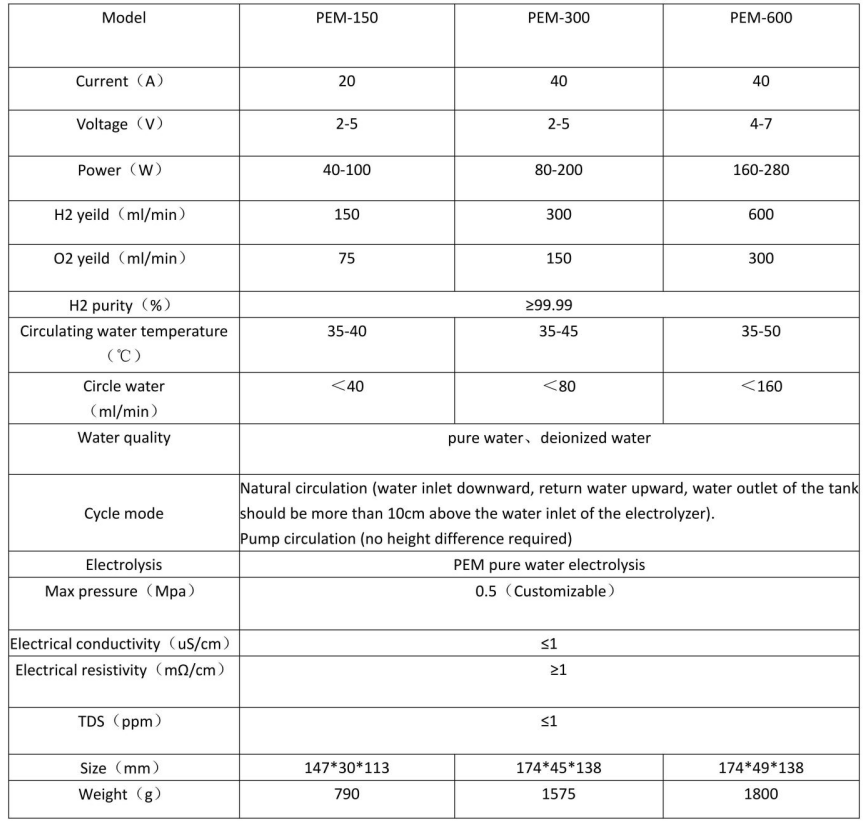

Model	PEM-150	PEM-300	PEM-600
Current（A）	20	40	40
Voltage（V）	2-5	2-5	4-7
Power（W）	40-100	80-200	160-280
H2 yeild（ml/min）	150	300	600
O2 yeild（ml/min）	75	150	300
H2 purity（%）	≥99.99
Circulating water temperature（℃）	35-40	35-45	35-50
Circle water（ml/min）	＜40	＜80	＜160
Water quality	pure water、deionized water
Cycle mode	Natural circulation (water inlet downward, return water upward, water outlet of the tank should be more than 10cm above the water inlet of the electrolyzer). Pump circulation (no height difference required)
Electrolysis	PEM pure water electrolysis
Max pressure（Mpa）	0.5（Customizable）
Electrical conductivity（uS/cm）	≤1
Electrical resistivity（mΩ/cm）	≥1
TDS（ppm）	≤1
Size（mm）	14730113	17445138	17449138
Weight（g）	790	1575	1800

Q&A:

How safe is the PEM electrolytic cell?

There will be no safety problems for use according to the instructions.

How long is the life of the PEM electrolytic cell?

Our products can last for about 20,000 hours.

What are the advantages of PEM electrolytic cells over other electrolytic technologies?

PEM electrolytic cell has the advantages of high energy conversion efficiency, fast response speed, low operating temperature, high gas purity and small footprint. In addition, its modular design facilitates capacity expansion and maintenance.

How to maintain the PEM electrolytic cell to ensure its performance?

Maintenance of PEM electrolytic tank requires regular inspection of the status of the membrane, cleaning the electrode and diffusion layer, replace the aging seal, etc. At the same time, the electrolytic cell needs to be kept clean and dry to avoid electrolyte leakage and contamination.
