8000ML hydrogen fuel cell PEM electrolyzer
1.PEM electrolyzer
PEM electrolyzer decomposing the chemical energy of water into hydrogen and oxygen. This electrolysis cell can releases 8,000 ML of hydrogen per minute, which has the characteristics of efficient response, cleanliness and pollution-free, and is an important force in promoting the development of hydrogen energy economy.

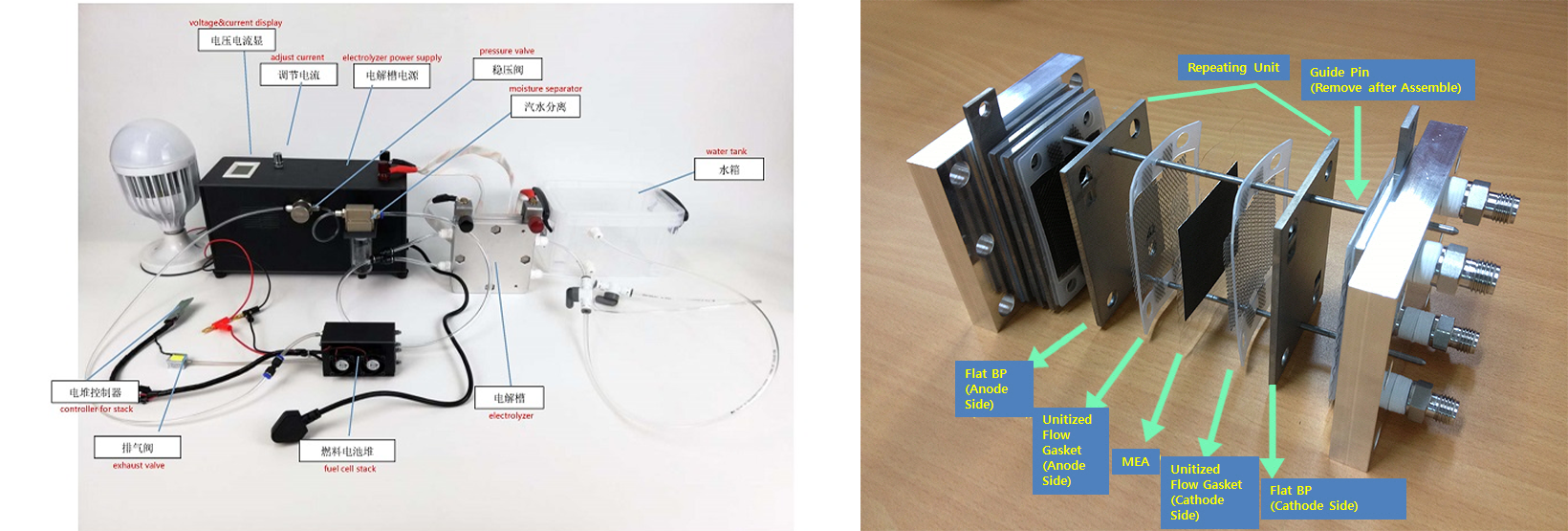

The core materials are mainly made of electrolytic membrane, electrode material, sealing element, gas diffusion layer, etc. The performance of the electrolytic membrane will directly affect the efficiency and service life of the electrolytic cell. According to the needs of application scenarios, PEM electrolyzers need to be matched with different proton exchange membranes. High purity PEM membranes mainly focus on improving proton conductivity efficiency and chemical stability, suitable for large-scale hydrogen production. Enhanced PEM membranes focus on improving the durability and operating conditions of electrolyzers, and are more suitable for industry.

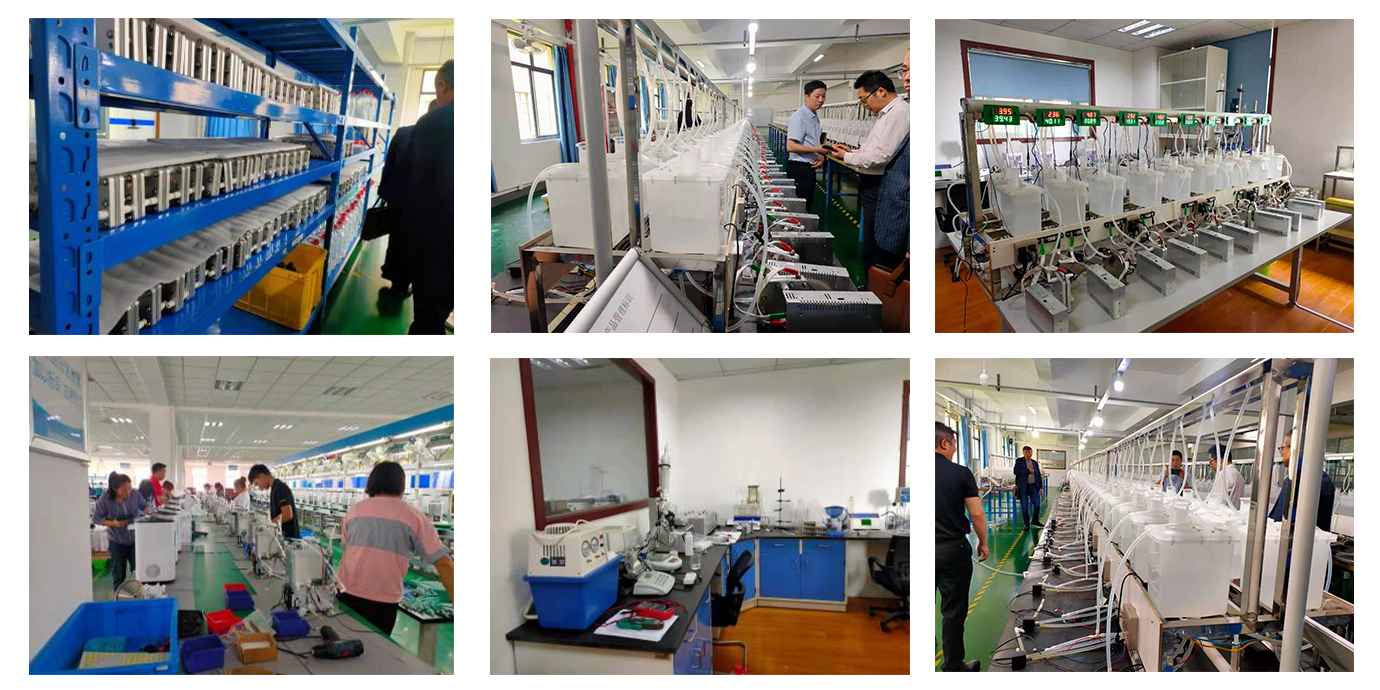

We focuses on the research and production of core components for PEM electrolysis cells, providing customized sizes of PEM electrolysis cells.The PEM electrolysis cells follow standard quality control processes, with meticulous assembly and testing. Our product line is very comprehensive and rich. The electrode materials inside the electrolytic cell are carefully designed and selected to ensure efficient and stable electrolytic performance; The sealing element adopts advanced materials and technology to ensure the long-term safety and stability of the electrolysis process.
2.Applications

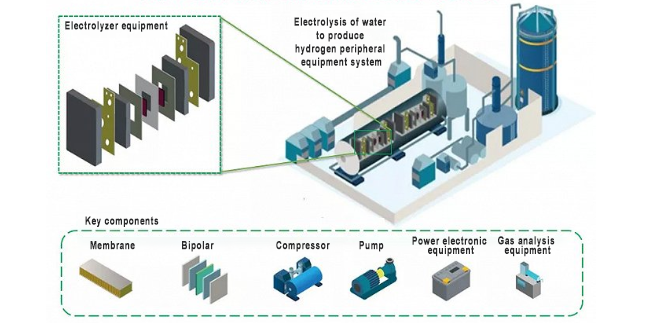

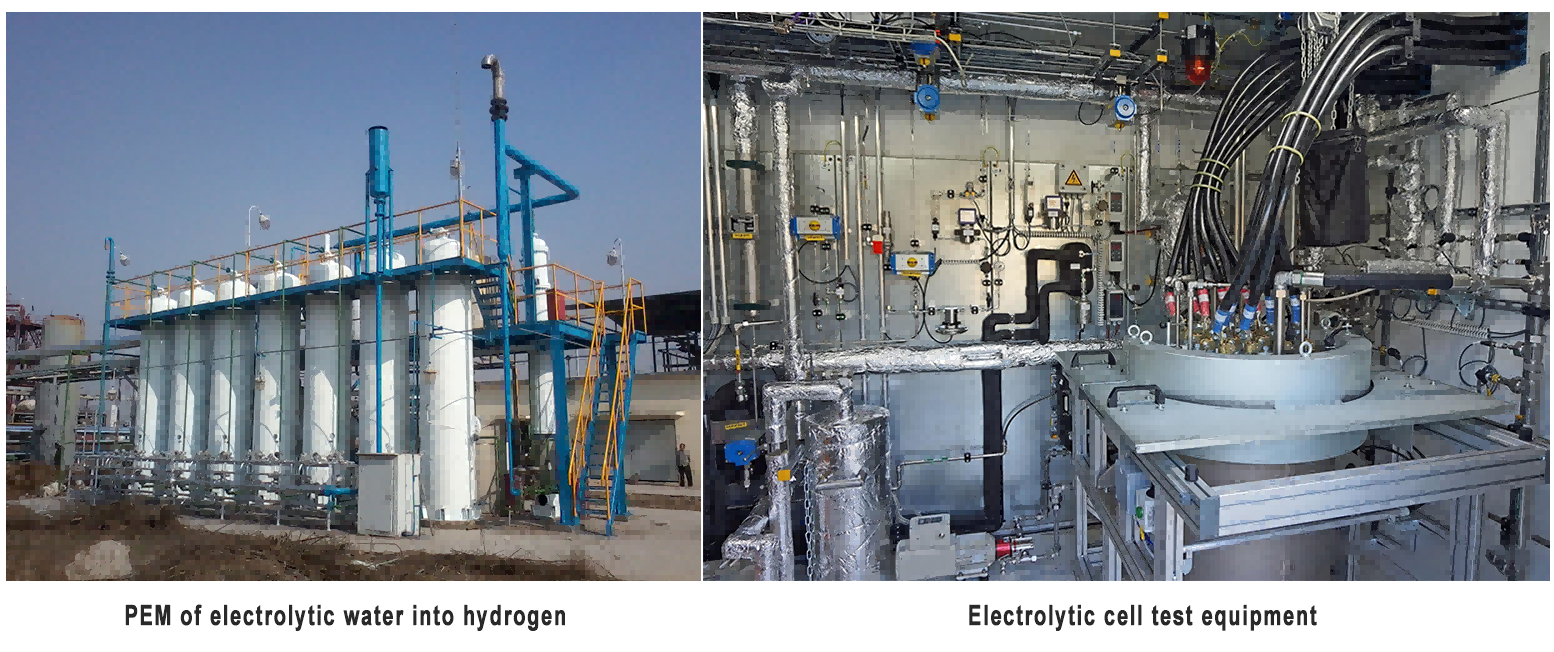

PEM electrolysis cells are widely used in fields such as renewable energy hydrogen production, fuel cell hydrogen supply systems, and distributed energy storage, especially with the rapid development of emerging markets such as new energy vehicles, as well as the introduction of VCSEL technology. Not only has it improved the monitoring performance and safety management of hydrogen fuel cells, but it has also gradually expanded the automatic driving assistance systems of automobiles, such as driver status monitoring, fatigue driving warning, etc., further promoting the commercialization process of PEM electrolysis cells and related hydrogen energy technologies.
Datasheet_PEM Electrolyzer | |||||||||
Model | Unit | PEM-150 | PEM-300 | PEM-600 | PEM-1000 | PEM-1500 | PEM-2000 | PEM-3000 | PEM-8000 |
Cells | 2 | 1 | 2 | 4 | 6 | 8 | 12 | 32 | |
Stack Diameter | mm | 85 | 138 | 138 | 138 | 138 | 138 | 138 | 138 |
H2 Flow Rate | mL/min | 0-150 | 0-300 | 0-600 | 0-1000 | 0-1500 | 0-2000 | 0-3000 | 0-8000 |
02 Flow Rate | mL /min | 0-75 | 0-150 | 0-300 | 0-500 | 0-750 | 0-1000 | 0-1500 | 0-4000 |
Voltage | V(DC) | 2-5 | 2-5 | 4-7 | 8-10 | 11-14 | 15-18 | 20-23 | 26-30 |
Max Input Current | A(DC) | 20 | 40 | 40 | 40 | 40 | 40 | 80 | 120 |
Water Consumption Rate | cc /hr | 12 | 18 | 36 | 60 | 60 | 60 | 90 | 120 |
Operating Temperature | 5℃ to 45℃ | ||||||||
Output Pressure | 0~1MPa | ||||||||
MembraneType | Nafion PFSA | ||||||||
Sintered Titanium diffusion medium | |||||||||
Precious metalelectrode | |||||||||
Need deionized or re-distilled water | |||||||||
Water Resistivity:>1 MQ*cm | |||||||||
Water Conductivity:<1 us/cm | |||||||||
Estimated Lifetime:If the water quality and power supply is always in ideal condition you canexpect about 10,000 hoursof operation. | |||||||||

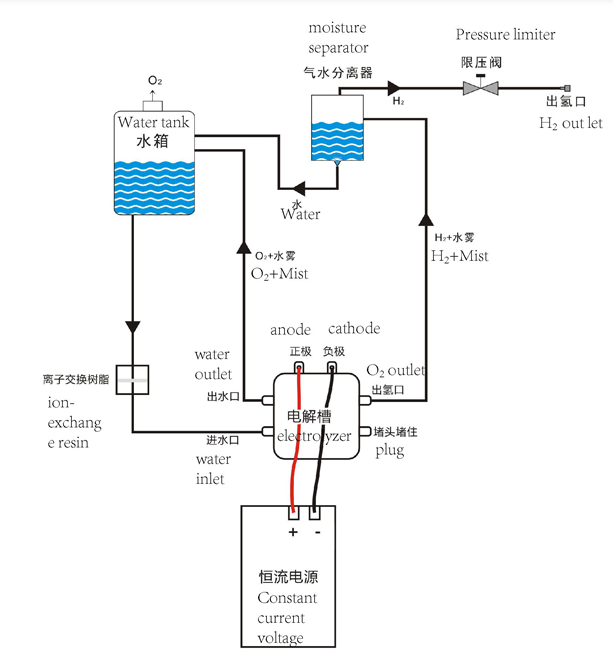

3.Working principles：
