9L Carbon Fiber Gas Cylinder Hydrogen Storage
The 9L hydrogen storage tank produced by Hycircle can store more than 2800L hydrogen gas through high-pressure storage. Hycircle company is committed to providing high-quality products at competitive prices. We integrate hydrogen production, utilization, and storage into one system, which provide kinds of hydrogen tanks model. Welcome to inquiry us when you would like to 9L high pressure gaseous state hydrogen storage tank.
Hycircle is a professional manufacturer and supplier of various hydrogen energy products. Regards the hydrogen storage tank, adopting top-quality carbon fiber and high-strength aluminum alloy liner, this product is made by the application of first -class equipment and advanced fully-wrapping technology.
The 9L High pressure gaseous hydrogen storage tank is made of carbon fiber+6061AL material ( also high-strength composite materials) are now used to store hydrogen at higher pressures to achieve greater driving range in hydrogen-fueled vehicles , which can store about 2800L hydrogen gas. Normally, the hydrogen cylinder always by pressurizing hydrogen gas to 20MPa-80MPa, the storage and release of hydrogen gas can be achieved. The carbon fiber wrapped hydrogen gas cylinder is famous for its resistance to corrosion, long service life, light weight, high strength and no breakage. Currently, it is replacing the traditional metal materials hydrogen gas cylinders, and is widely used in fire fighting, chemical, mining, auto industries and other new and high-tech fields.

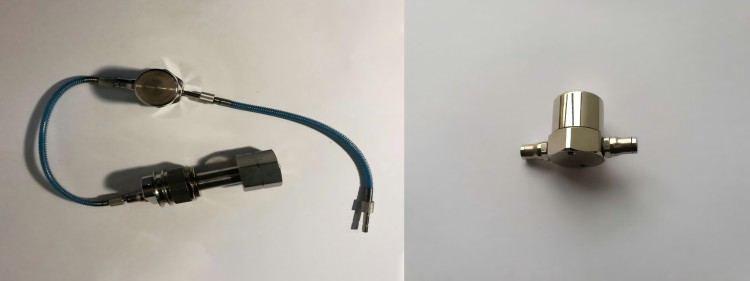

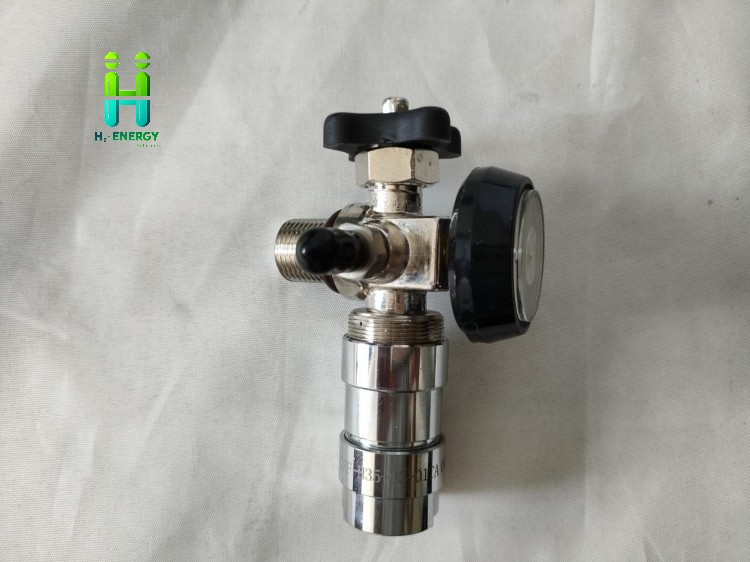

Gas Cylinder Pressure Relief Valve

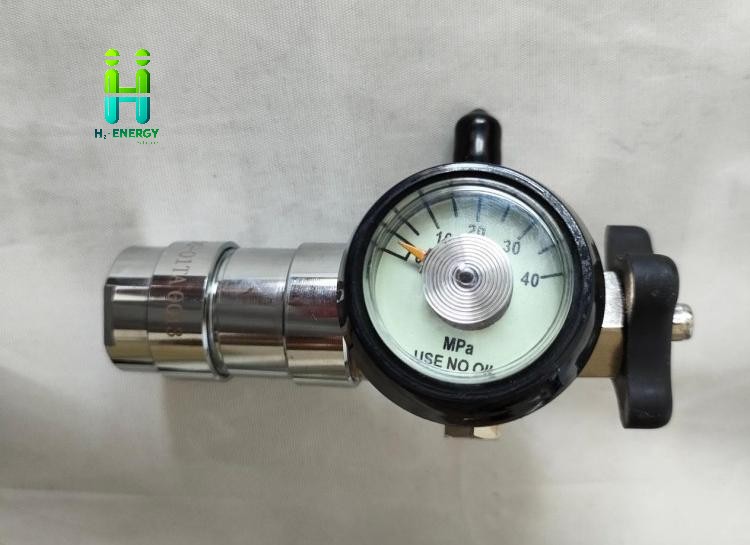

R & D team designed a special hydrogen fuel cell one-stage two-stage integrated pressure reducing valve. The hydrogen gas cylinder pressure reducing Valve is an integrated gas supply unit designed for small hydrogen supply systems, suitable for 35MPa drones and other equipment. It includes a pressure gauge, safety valve, one-way charging valve, manual on/off valve, filter, and secondary pressure reducing valve for a more efficient and safer hydrogen supply.
1). One-stage parameters: Input pressure: 3-35MPa Output pressure: 0.5MPa-1MPa
2). Second-stage parameters: Input pressure: 0.1-1.6MPa Output pressure: 0.05-0.06MPa

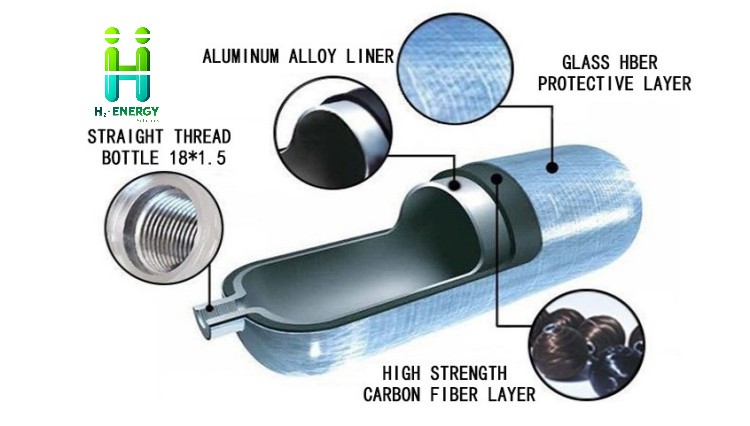

Hydrogen Gas Cylinder Structure

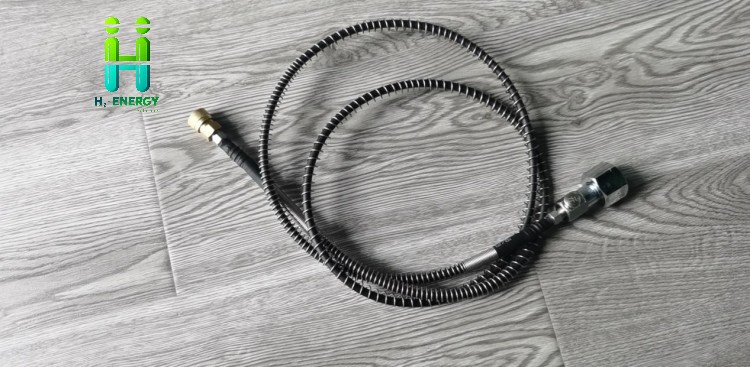

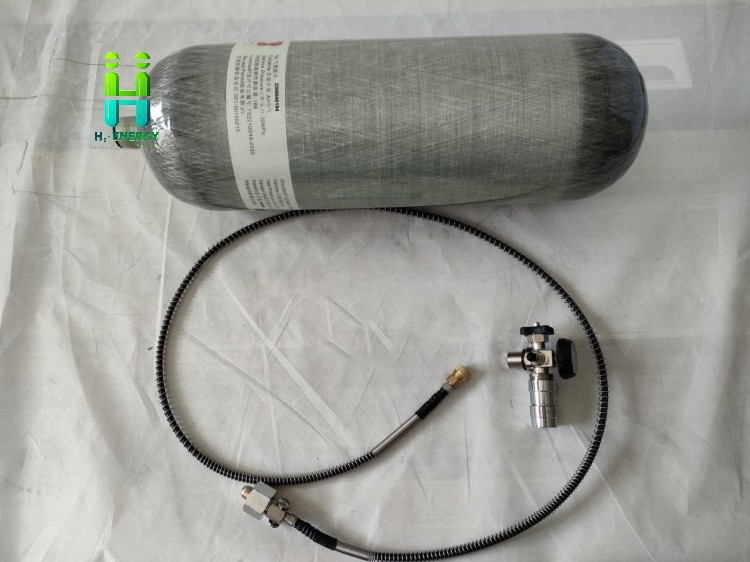

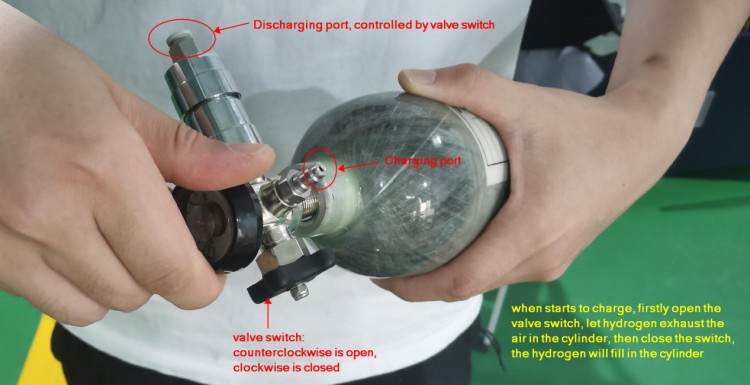

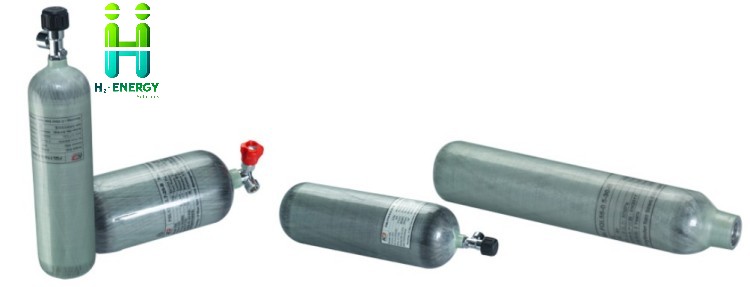

Product Display
