Hydrogen Fuel Cell MEA
The MEA made by Hycircle technology Co., Ltd is mainy used for hydrogen fuel cell, which are effective for generating the electrochemical reactions needed to separate electrons. We produce research and cover the entire value chain of MEA, from catalyst to full-size 7-layer MEA, with a specialized team designing every link. Therefore, the performance and service life of the product are greatly guaranteed. This product can be used in fuel cell vehicles, fuel cell power generation and other fields, with high efficiency, long life, low noise and other advantages. Welcome to inquire and buy when you have requirement.
MEA also called membrane electrode assembly, which is core component of PEM fuel cell. It consists of a proton exchange membrane sandwiched between two electrodes that embed catalysts. Anode and cathode are electrically insulated from each other by proton exchange membrane, which keeps hydrogen and air separate.
The catalyst layers are made of porous carbon support particles covered by platinum nanoparticles and partially covered by a proton-conducting polymer firm called ionomer. This allows oxygen, hydrogen, and water can all diffuse through the pores in the catalyst layers to react with each other.
The catalyst layers are made of porous carbon support particles with platinum nanoparticles on top, partially covered by a proton-conducting polymer film called an ionomer. Oxygen, hydrogen, and water can all diffuse through the pores in the catalyst layers to react with one another. A liner foil is attached to the catalyst coating membrane (CCM) so that a 5-layer MEA is formed. A gas diffusion layer (GDL) on top of the two electrodes contributes to current flow, gas diffusion and water removal, and a 7-layerMEAis formed
The fuel cell industry is a dynamic one, and we take great pride in solving complex scientific problems, focusing on fuel cell MEA R& D, and being an enabler of the hydrogen economy. If you are interested in our products, please feel free to inquire us!
Applications:
What can we customize
Structural Diagram For Mea

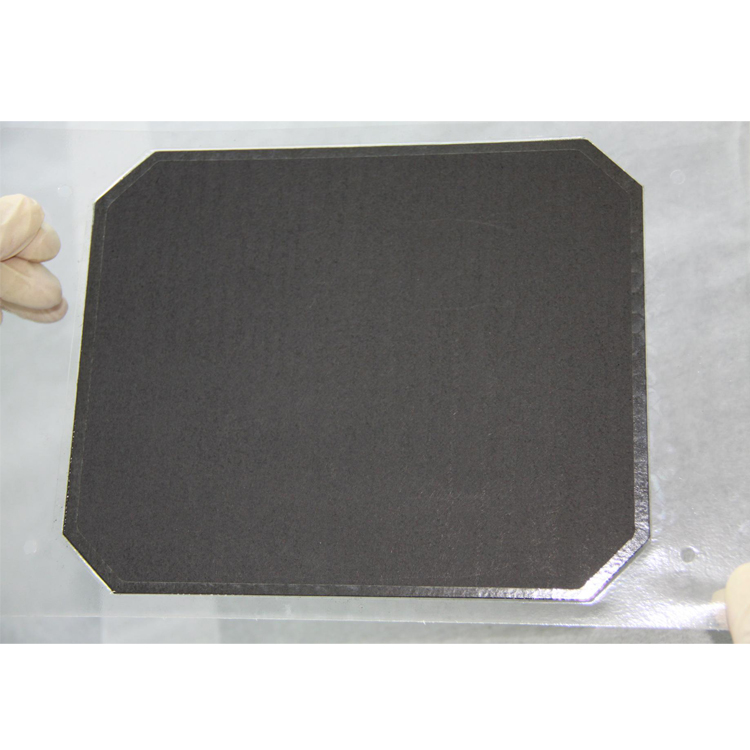

Detailed display：
