150ML/MIN Electrolyzer System
Hydrogen made by PEM water electrolyze also known as proton exchange membrance water electrolysis of hydrogen. Each electrolytic chamber of the electrolytic cell is divided into an anodic chamber and a cathodic chamber, which the anodic chamber produces oxygen and the cathodic chamber produces hydrogen. High purity, low energy consumption, high material utilization rate and long service life characteristic do the PEM electrolyzer have, which uses pure water as the raw material of electrolytic water for hydrogen production process to avoid potential pollution and corrosion problems. We commits to new energy several years in china, welcome to inquiry us is you are interested.
PEM electrolyzer made by Hycircle Technology Co., Ltd owns higher proton conductivity and chemical stability to operate long- term stable harsh working environment. This electrolytic system provide customize service with fast dynamic response times. We R& D new energy several years, water electrolysis is a promising technology for energy storage coupled with renewable energy sources.
This hydrogen generator utilize Proton Exchange Membrane as solid electrolyte to split water. In this process, water molecules undergo oxidation reactions on the anode side, losing electrons and generating oxygen and protons (H+). Subsequently, protons are conducted through the proton exchange membrane to the cathode side under the action of an electric field in the PEM electrolyzer, while electrons flow from the anode to the cathode through an external circuit. On the cathode side, protons combine with electrons to undergo a reduction reaction, generating hydrogen gas. In this way, the PEM electrolyzer completes the process of decomposing water into hydrogen and oxygen.
Electrolytic system is mainly composed of efficient cation exchange group and advanced polymer electrolyte. PEM electrolyzer uses the separation ability of the semi-permeable membrane and the basic reaction of proton conduction to output clean electric energy to the outside world. The PEM electrolyzer has a hydrogen production rate of 300 ml per minute, which is not only easy to operate, but also has stable chemical properties and low cost advantages. It is widely used in hydrogen fuel cell technology and biomedicine. Green environmental protection and chemical industry and other key fields.
The following reactions take place within it:
• Anode: 2H2O → 4H+ + O2 + 4e-
• Cathode: 4H+ + 4e- → 2H2
• Complete Reaction: 2H2O → 2H2 + O2
Applications：
• R&D : PEM electrolyzer apply to research laboratories and academic institutions conducting experiments requiring on-site hydrogen generator.
• Energy Storage : The hydrogen production widely utilized in renewable energy systems and contribute to grid stability and energy management, which store excess energy in the form of hydrogen for later use in PEM electrolyzer.
• Fuel Cells : Fuel cell provide energy for backup power systems, portable electronics, or small vehicles, which use hydrogen produced by electrolytic system.
• Specialty Gas Production : PEM electrolyzer used for industries and fields that require small amounts of high-purity hydrogen, such as semiconductor manufacturing, metal processing, or chemical synthesis.
• Education and Training : As for educational tool in schools and training centers to study principles of water electrolysis and PEM electrolyzer.

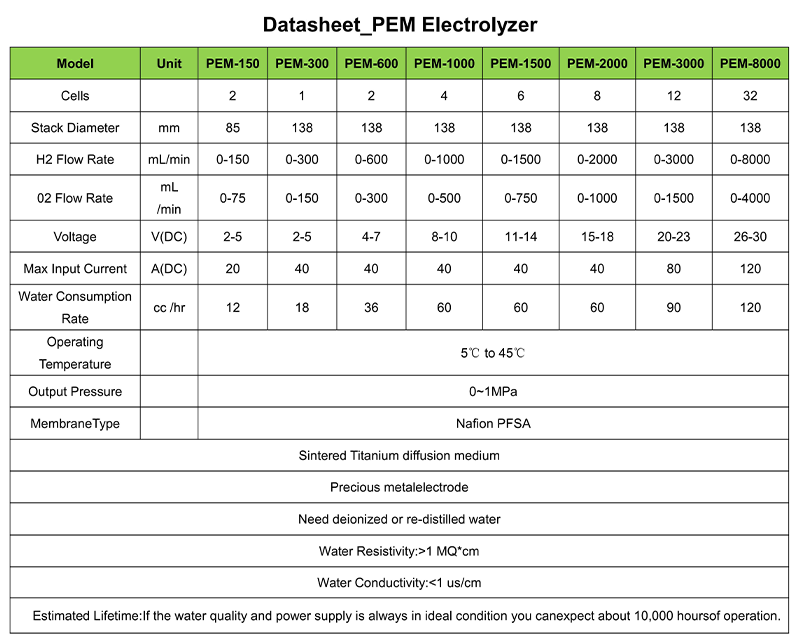

Product Data :

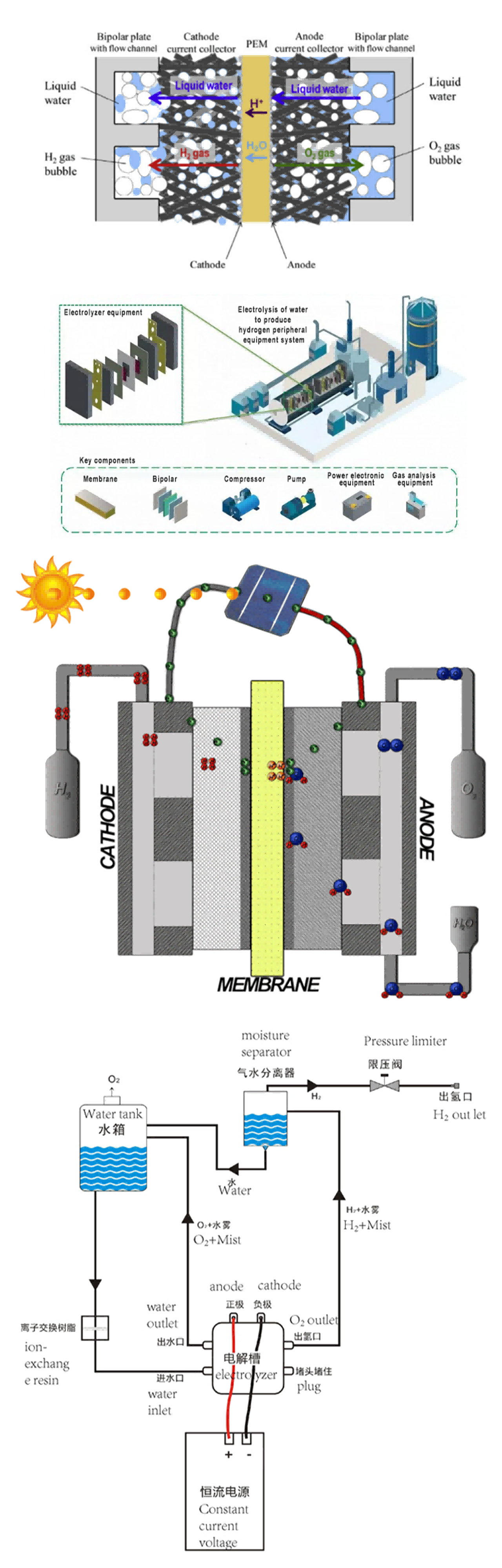

Working principle :
