89 Microns NE-1135 Nafion Membrane
Hycircle is specialized supplier and manufacturer of proton exchange membranes, which focused on advanced materials and assembly. We both provide Nafion membrane and VET membrane using electrolyzer and hydrogen fuel cell. NE-1135 pem membrane are Nafion membrane and 89 microns thickness, due to it was purchased by us largely every year, thus greatly price advantage do we have. If you are interested in this perfluorinated sulfonic acid membrane, welcome to inquiry us.
Nafion PFSA membrane are non-reinforeced films, which as a separator in electrochemical cells that demand high ionic conductivity, such as fuel cells and PEM Electrolyzer. This nafion membrane NE-1135 are required to selectively transport cations across the cell junction, which In its acidic (hydrogen ion) form and derivatives, it serves as a solid superacid catalyst, making it valuable for a broad range of synthetic applications.
89 microns thickness Proton Exchange Membrane is a thinner ion exchange membrane material with good proton conductivity. It can efficiently transfer proton ions and limit the transmission of other ions and molecules. Therefore, it can be used as a catalyst carrier to promote chemical reactions. At the same time, the 89 Microns Thickness Proton Exchange Membrane can also be used in ion exchange, separation and purification processes. In the chemical industry and environmental fields, 89 Microns Thickness Proton Exchange Membrane are widely used in processes such as electrolysis, electrodialysis, ion exchange and pure water preparation.
Characteristic
▪ Good thermal stability used for MEA
▪ High temperature resistance
▪ PFSA membrane electrochemical oxidation resistance
▪ Low corrosion,Good chemical stability;
▪ Thiscness 89 microns benefits to good mechanical properties
▪ Nafion Pfsa Membrane owns higher conductivity compares to others
▪ PFSA membrane for a Wide Variety of Electrochemical Applications
Applications
This perfluorosulfonic acid membranes are composed of a PFSA/polytetrafluoroethylene (PTFE) copolymer. Widely utilized in electrochemical cells, they serve as solid electrolytes that conduct cations. Nafion NE-1135 membrane come in a variety of grades and embody different properties, allowing designers and engineers to match nafion NE-1135 membrane to their specific application needs. Due to its high thicknes, this perfluorosulfonic Acid Membrane is particularly well-suited for MEA manufacture and used for electrochemistry field.
Features and Benefits

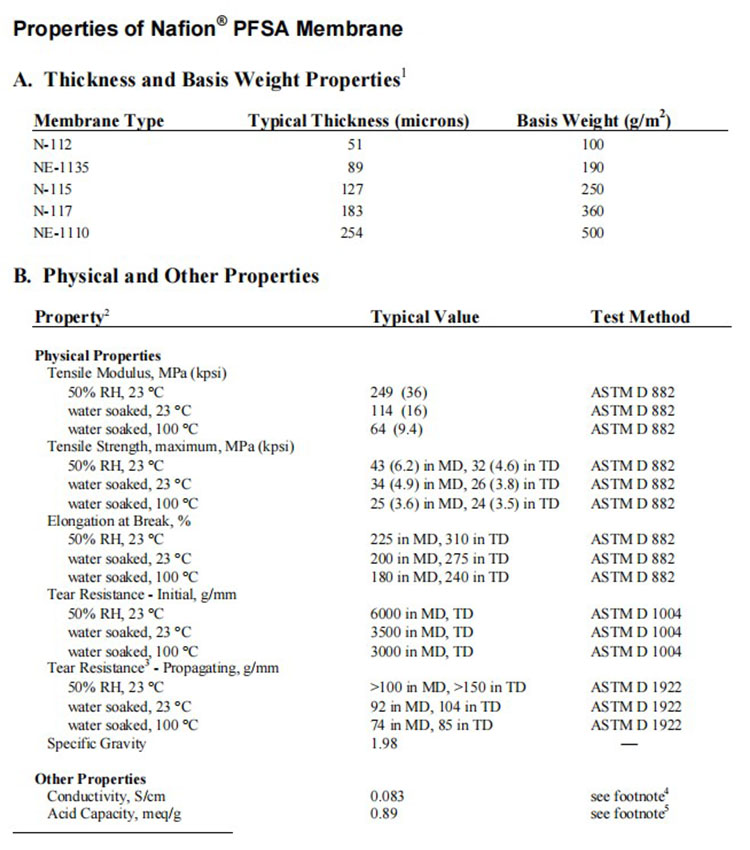

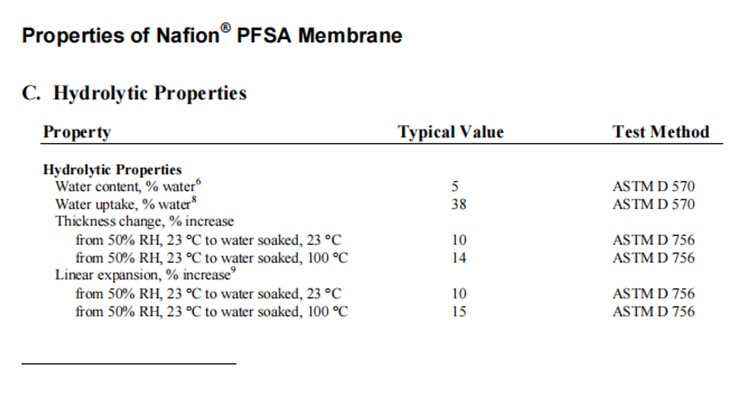

Nafio PFSA membrane possess distinct characteristics and are suitable for a wide range of applications. (See table below.)
