600ML Hydrogen generator PEM electrolyzer

PEM electrolyzer made by Hycircle Technology Co., Ltd owns higher proton conductivity and chemical stability to operate long- term stable harsh working environment. This electrolytic system provide customize service with fast dynamic response times, large operational ranges and high efficiencies. We R& D new energy several years, water electrolysis is a promising technology for energy storage coupled with renewable energy sources. If you are interested in this hydrogen generator, feel free to inquiry us.

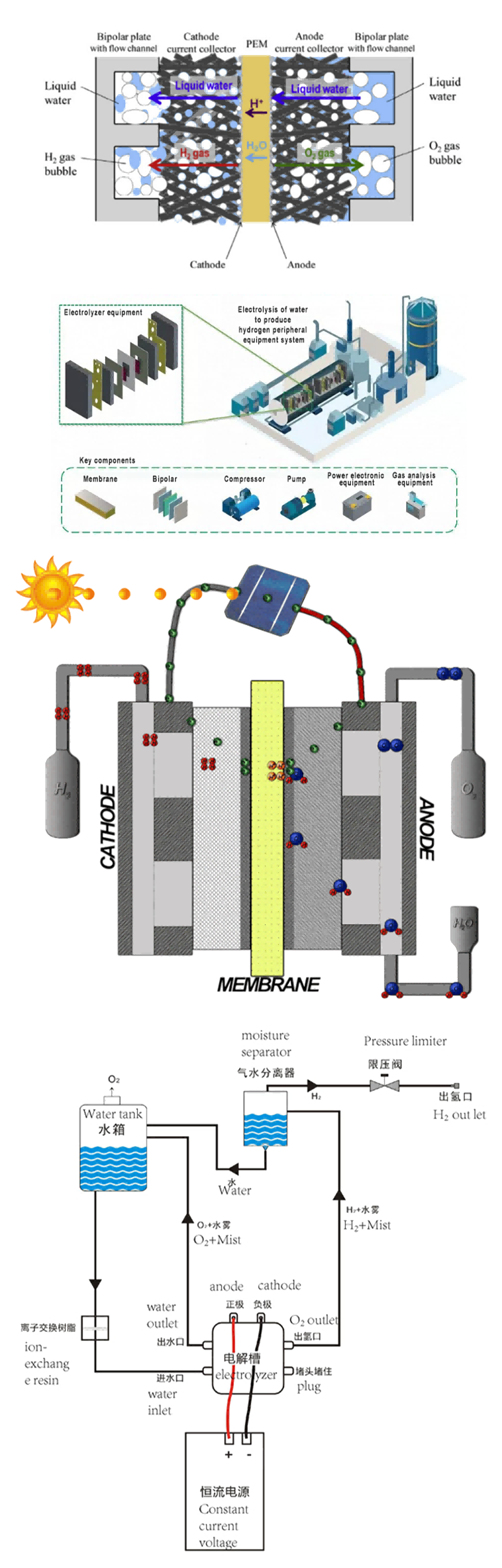

The main components of PEM water electrolysis are proton exchange membrane, catalyst layer, gas diffusion layer and bipolar plate. The diffusion layer, catalytic layer and proton exchange membrane constitute membrane electrode (MEA), which is the home field of the material transmission and electrochemical reaction of the whole hydrogen generator. The electrolytic cell is the core unit of hydrogen production equipment, water molecules undergo oxidation reactions on the anode side, losing electrons and generating oxygen and protons (hydrogen ions). Subsequently, protons are conducted through the proton exchange membrane to the cathode side under the action of an electric field, while electrons flow from the anode to the cathode through an external circuit. On the cathode side, protons combine with electrons to undergo a reduction reaction, generating hydrogen gas. In this way, the electrolytic system completes the process of decomposing water into hydrogen and oxygen.

The following reactions take place within it:

• Anode: 2H₂O → 4H+ + O₂ + 4e-
• Cathode: 4H+ + 4e- → 2H₂
• Complete Reaction: 2H₂O → 2H₂ + O₂

Applications：

R&D
Apply to research laboratories and academic institutions conducting experiments requiring on-site hydrogen generator.

Energy Storage
The PEM electrolyzer Widely utilized in renewable energy systems and contribute to grid stability and energy management, which store excess energy in the form of hydrogen for later use.

Fuel Cells
Fuel cell provide energy for backup power systems, portable electronics, or small vehicles, which use hydrogen produced by electrolytic system.

Specialty Gas Production
Electrolytic cell used for industries and fields that require small amounts of high-purity hydrogen, such as semiconductor manufacturing, metal processing, or chemical synthesis.

Education and Training
As for educational tool in schools and training centers to study principles of water electrolysis and hydrogen production.

Normally, the 600ML PEM electrolyzer system made by Hycircle Technology Co., Ltd mainly consists of the following parts:

 Q&A:

1. How safe is the PEM electrolytic cell?

There will be no safety problems for use according to the instructions.

2. How long is the life of the PEM electrolyzer?

Our products can last for about 20,000 hours.

3. What are the advantages of PEM electrolyzer over other electrolytic technologies?
It has the advantages of high energy conversion efficiency, fast response speed, low operating temperature, high gas purity and so on. In addition, its modular design facilitates capacity expansion and maintenance.

4. How to maintain the hydrogen generator to ensure its performance?

You need regular inspection of the status of the membrane, cleaning the electrode and diffusion layer, replace the aging seal, etc. At the same time, the electrolytic system needs to be kept clean and dry to avoid electrolyte leakage and contamination.

5.What is the electrolyzer include?

The system includes:

1*electrolyzer stack

1*power supply

1*pressure stabilizing valve

1*gas-water separator
