High-Performance 2000ML PEM Electrolyzer system
Hycircle Technology Co ., Ltd is a high-tech enterprise established in china. We are focus on R& D advanced technology material and renewable energy products several years. Especially in PEM electrolyzer filed, we can provide comprehensive series of products of electrolysis with kinds of applications. Three qualified factories and two laboratories do we have now, which ensure advanced production equipment and programmed production processes to output stably and produce electrolyzers absolutely safe. With the characteristic of light, high efficiency, energy saving, environmental protection, our electrolyzer system owns leading position in Chinese market now. Welcome to inquiry us and send your parameters.
Hydrogen is the most efficient energy carrier, which can be used for fuel cell and industrial applications. Among many hydrogen production methods, eco-friendly and high purity of hydrogen can be obtained by PEM water electrolysis, which was considered as most promising techniques for high pure efficient hydrogen production from renewable energy sources and emits only oxygen as byproduct without any carbon emissions.

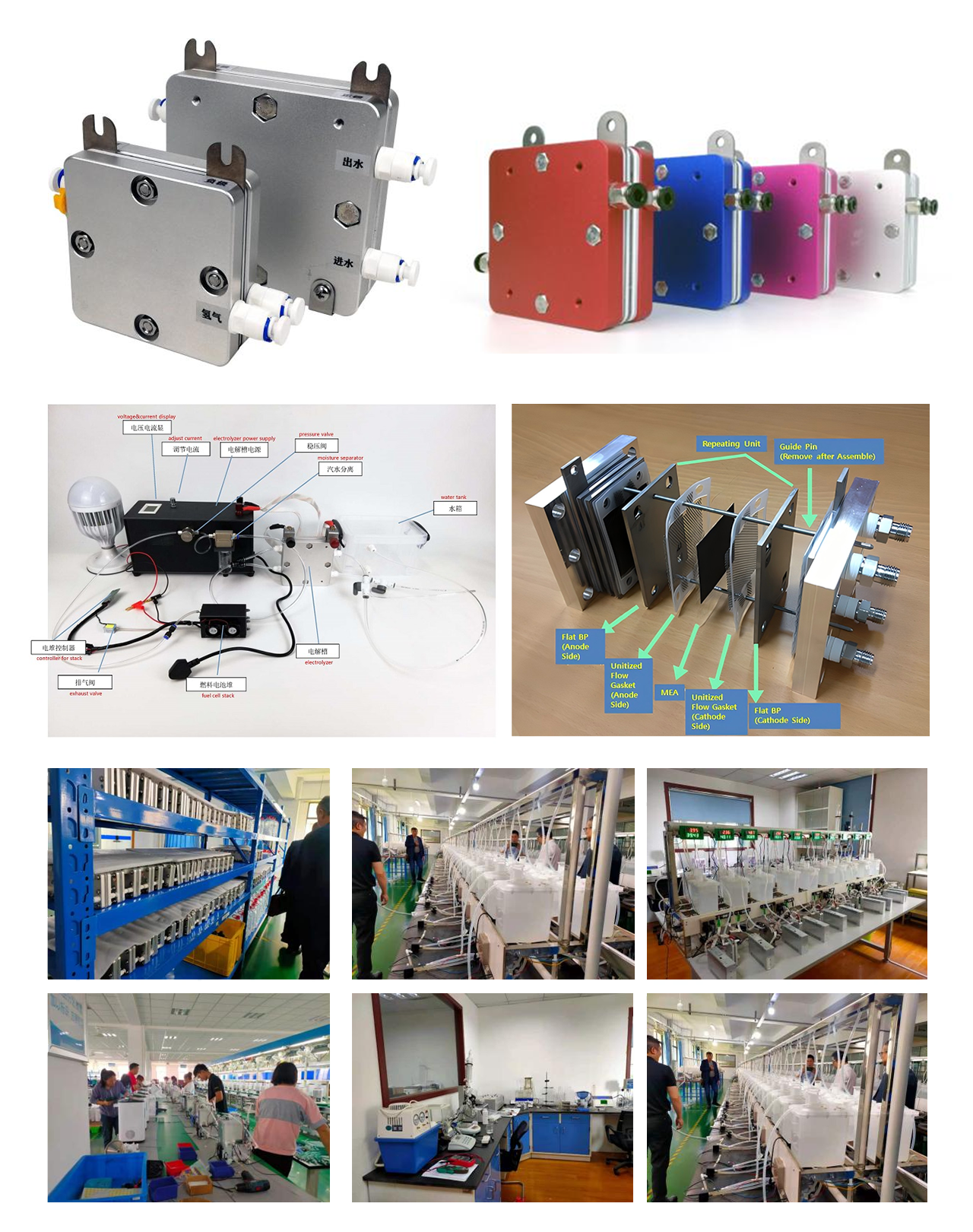

PEM electrolyzer system produced by Hycircle Technology Co., Ltd employs high performance membrane electrode components and optimized hydrogen generator structure design in terms of technology, which have higher proton conductivity and chemical stability to operate long- term stable harsh working environment. The hydrogen generator rate of this product could reach 2000ML/MIN.

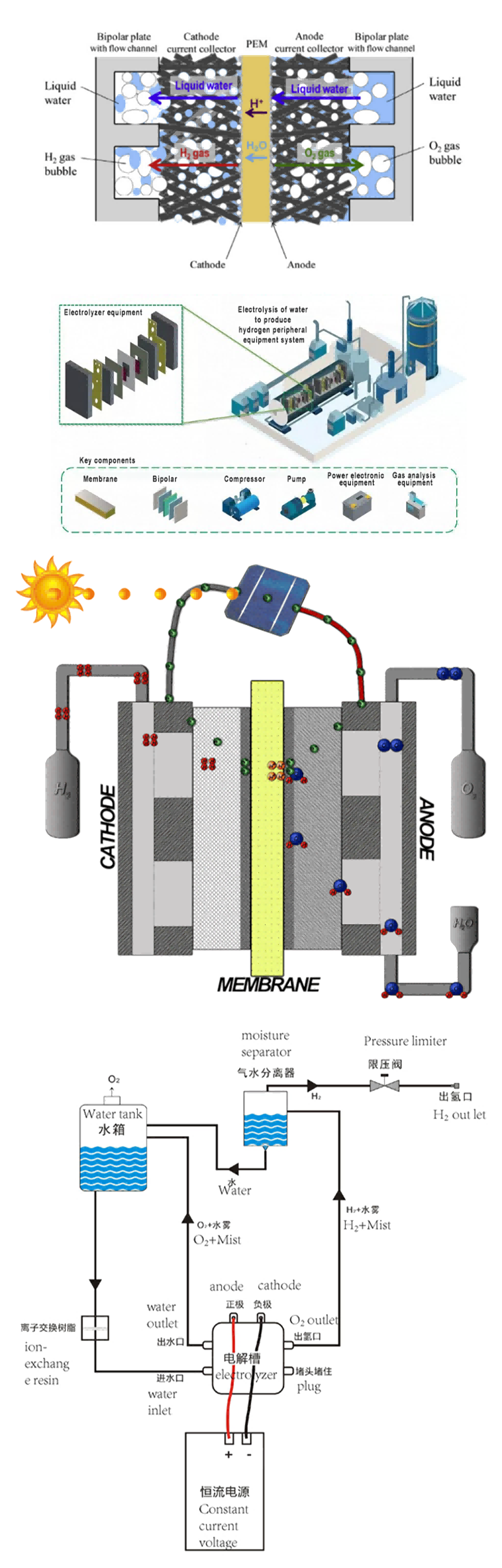

The electrolyzer manufactured by Hycircle is the core unit of hydrogen production system, which utilize Proton Exchange Membrane as solid electrolyte to split water. In this process, water molecules undergo oxidation reactions on the anode side, losing electrons and generating oxygen and protons (H+). Subsequently, protons are conducted through the proton exchange membrane to the cathode side under the action of an electric field, while electrons flow from the anode to the cathode through an external circuit. On the cathode side, protons combine with electrons to undergo a reduction reaction, generating hydrogen gas. In this way, electrical energy is converted directly to chemical energy via electrochemical route. De-ionized water is supplied from outside to the anode side of the electrolyzer cell and gets converted into hydrogen and oxygen gas. This is also known as water electrolysis.
The innovative electrode structure and flow field designed by Hycircle Technology Co., Ltd enhance the efficiency and stability of the electrolytic reaction. Normally, the 2000ML PEM electrolyzer system made by Hycircle Technology Co., Ltd mainly supply the following parts:
Tank body | This is the main part of an electrolytic cell, used to hold electrolyte and perform electrochemical reactions. |
Anode and Cathode | Located at both ends of the electrolytic cell, they are the main sites for electrochemical reactions. On these electrodes, water molecules decompose into hydrogen and oxygen under the action of direct current. |
Diaphragm | Usually used between the anode and cathode chambers to prevent direct contact between the two electrolytes and ensure smooth current flow. |
Auxiliary systems | Including modules such as power conversion, water circulation, gas separation, and gas purification, all of which work together to support the normal operation of the electrolytic cell. |
Applications：
R&D
Apply to research laboratories and academic institutions conducting experiments requiring on-site hydrogen generation.
Energy Storage

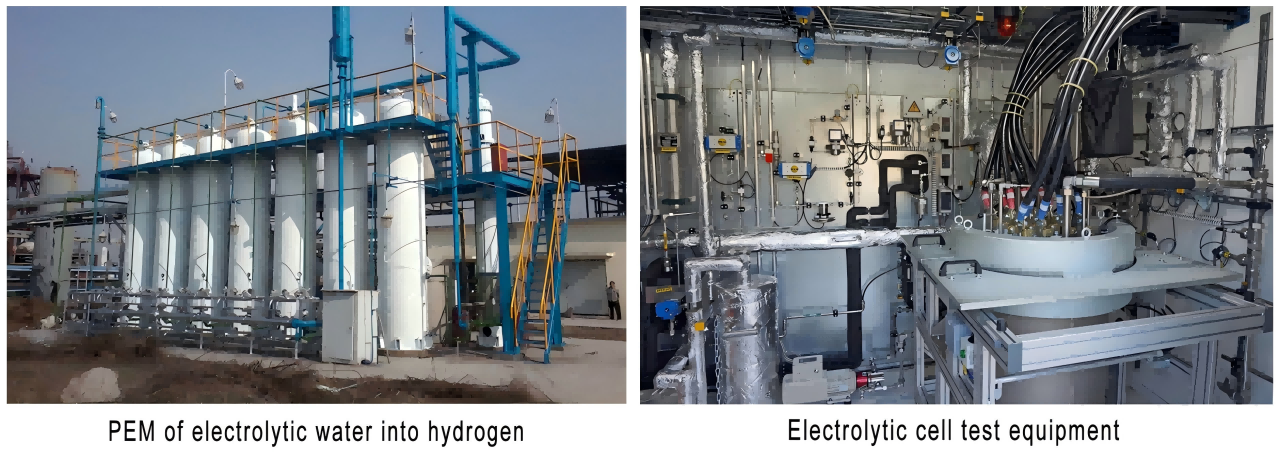

Widely utilized in renewable energy systems and contribute to grid stability and energy management, which store excess energy in the form of hydrogen for later use.
Fuel Cells
Fuel cell provide energy for backup power systems, portable electronics, or small vehicles, which use hydrogen produced by electrolyzer system.
Specialty Gas Production
Used for industries and fields that require small amounts of high-purity hydrogen, such as semiconductor manufacturing, metal processing, or chemical synthesis.
Education and Training
As for educational tool in schools and training centers to study principles of electrolysis and hydrogen production.
Datasheet_PEM Electrolyzer | |||||||||
Model | Unit | PEM-150 | PEM-300 | PEM-600 | PEM-1000 | PEM-1500 | PEM-2000 | PEM-3000 | PEM-8000 |
Cells | 2 | 1 | 2 | 4 | 6 | 8 | 12 | 32 | |
Stack Diameter | mm | 85 | 138 | 138 | 138 | 138 | 138 | 138 | 138 |
H2 Flow Rate | mL/min | 0-150 | 0-300 | 0-600 | 0-1000 | 0-1500 | 0-2000 | 0-3000 | 0-8000 |
02 Flow Rate | mL /min | 0-75 | 0-150 | 0-300 | 0-500 | 0-750 | 0-1000 | 0-1500 | 0-4000 |
Voltage | V(DC) | 2-5 | 2-5 | 4-7 | 8-10 | 11-14 | 15-18 | 20-23 | 26-30 |
Max Input Current | A(DC) | 20 | 40 | 40 | 40 | 40 | 40 | 80 | 120 |
Water Consumption Rate | cc /hr | 12 | 18 | 36 | 60 | 60 | 60 | 90 | 120 |
Operating Temperature | 5℃ to 45℃ | ||||||||
Output Pressure | 0~1MPa | ||||||||
MembraneType | Nafion PFSA | ||||||||
Sintered Titanium diffusion medium | |||||||||
Precious metalelectrode | |||||||||
Need deionized or re-distilled water | |||||||||
Water Resistivity:>1 MQ*cm | |||||||||
Water Conductivity:<1 us/cm | |||||||||
Estimated Lifetime:If the water quality and power supply is always in ideal condition you canexpect about 10,000 hoursof operation. | |||||||||
