How to guarantee the safety of hydrogen storage cylinders?

Hydrogen storage tanks are containers specifically designed for the safe storage of gaseous or liquid hydrogen. Hydrogen is the future of clean energy, but also the world's lightest element, with a high degree of diffusivity and flammability, its storage conditions have special pressure and temperature requirements, hydrogen gas storage tanks to meet certain physical requirements for the safe storage of hydrogen . The safe hydrogen gas storage tank is not only related to the design of hydrogen fuel storage tanks, but also related to the use of methods. Therefore, this paper will take high-pressure gaseous Hydrogen storage tank suppliers as an example, focusing on the structure and basics of hydrogen cylinders in order to realize the safe use of Hydrogen storage tank Manufacturer.

Structural feature

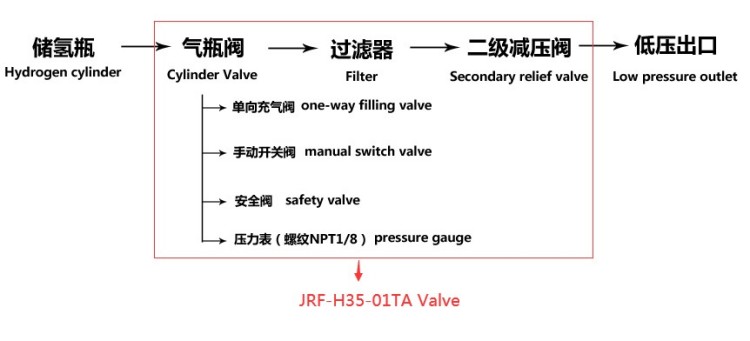

1. Cylinder Pressure Reducing Valve Module

Cylinder pressure reducing valve adopts two-stage positive regulating mode, high accuracy of outlet pressure, good stability, not easy to vibrate and other phenomena.

2. One-way filling valve

Cylinder pressure reducing valves are equipped with an original one-way filling valve, which acts as a stop valve when the module is inflated. During the filling operation, it is sufficient to keep the manual on/off valve closed without opening or closing the valve.

3. Filling status

To inflate the cylinder pressure reducing valve, close the manual on/off valve and insert the high pressure inflator tube into the one-way valve to inflate. After inflating to a predetermined pressure, remove the high pressure hose for use.

4. Deflate Condition

When the cylinder pressure reducing valve is working, open the manual switching valve to supply air downstream.

Hydrogen storage tank for sale specifications: what to look for?
1. Capacity: the capacity of the hydrogen storage tanks is usually calculated by how many grams of hydrogen can be stored, the density of hydrogen is 0.089g/L, the weight divided by the volume can be calculated for each hydrogen cylinder can hold liters of hydrogen.

2. Pressure level: to ensure that the hydrogen cylinder can safely store hydrogen, the general high-pressure gaseous hydrogen storage cylinder to store hydrogen pressure is 35MPa.

3. Leakage detection: Specialized detection systems can detect possible threats in time and facilitate timely handling.

4. Pressure relief device: It is beneficial to box overpressure to ensure safety.

Regulations, norms and standards

1. regulations: to protect public safety as a prerequisite, through reference to national security norms and administrative standards in advance of the design
2. Standards: Using a full range of design, manufacturing and specialized equipment testing instruments to inspect the production process, with technical experts from government and industry elites. National standards are based on consensus.
3. Compliance: Ensure that the tanks comply with relevant safety standards and certifications, such as ISO, DOT or EC regulations.

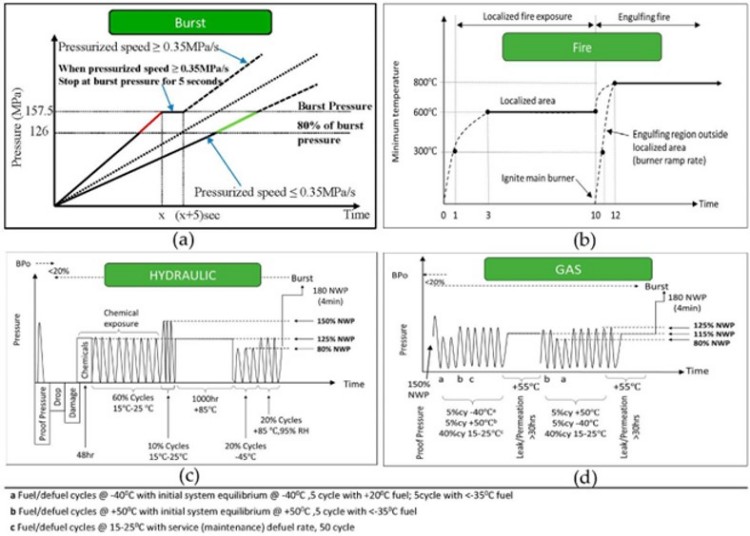

4 . Testing: A hycircle hydrogen storage tank is produced with a dozen or so testing procedures, which is a well-established process, and the production of hydrogen gas storage tanks pays great attention to safety and security. The most important tests are: hydraulic (pressure) test of the finished cylinder at room temperature, cylinder burst test, pressure cycling at test pressure and ambient temperature, immersion in salt water, drop test, extreme temperature cycling test, fire test, permeability test of non-metallic or unlined cylinders.

The best place to store compressed hydrogen

Ventilation of hydrogen is important because it is light and usually concentrates overhead, and to prevent the formation of potentially flammable mixtures with oxygen in the air, ventilation at high altitudes must be taken into account in the design. Hydrogen leaks can also occur, so flame and gas detectors, fire extinguishers, etc. are also installed to avoid the risk.

1. Good ventilation, do not allow hydrogen to accumulate, over a certain concentration of high temperature is easy to burn

2. Keep a safe distance from buildings and vents

3. Protected from vehicular traffic or falling objects

4. No direct sunlight and an ambient temperature of ~126°F (52°C).


Hydrogen Leak Detection

In addition to installing a leak detector, hydrogen gas storage tank should be checked regularly for corrosion, cracks, expansion, etc. using test methods such as soap bubbles or handheld hydrogen detectors.

hydrogen fuel storage tanks have a key role to play in the safe, efficient and sustainable transportation and storage of hydrogen, Hycircle has worked in the past and will continue to work on improving and validating the safety standards of Hycircle hydrogen storage tanks, developing rigorous testing procedures to ensure the safety of hydrogen tank storage, if you have any questions for Hydrogen storage tank wholesale, please feel free to ask us.
